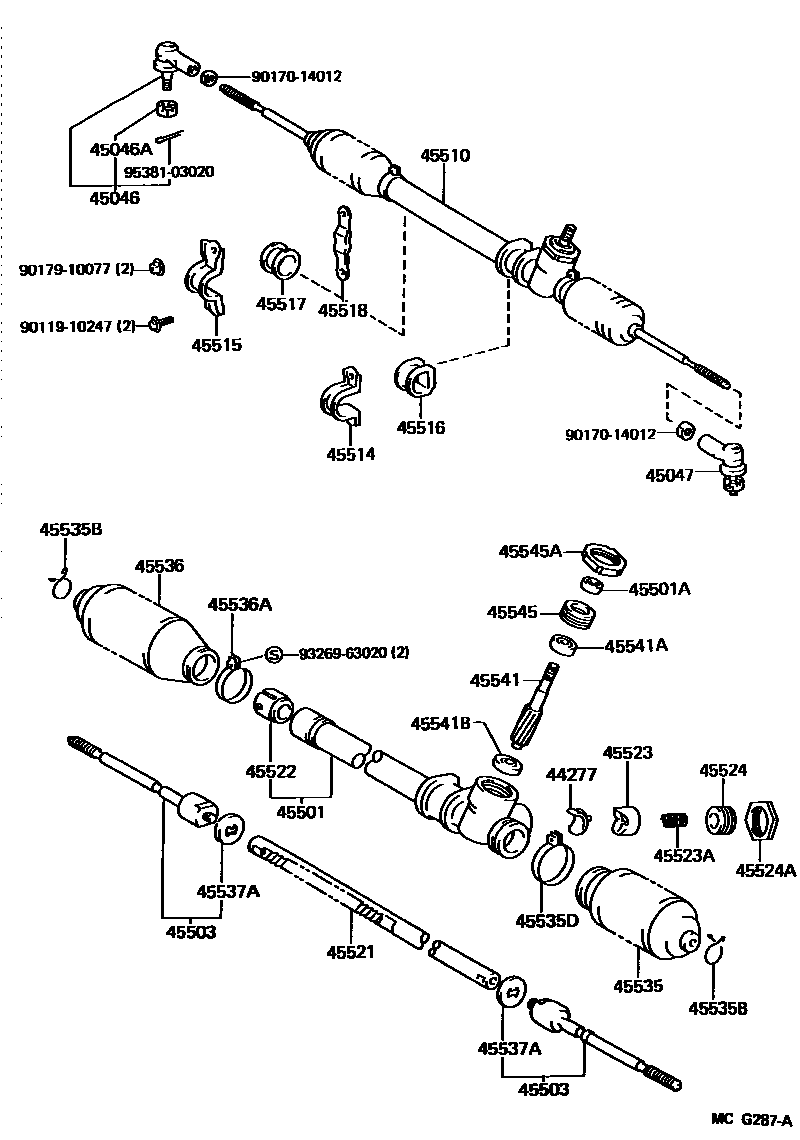

FRONT STEERING GEAR & LINK
44277SEAT, RACK GUIDE
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45501HOUSING SUB-ASSY, STEERING RACK
45503END SUB-ASSY, STEERING RACK
45510GEAR ASSY, STEERING
45514BRACKET, STEERING RACK HOUSING, NO.1
W(POWER STEERING)
45515BRACKET, STEERING RACK HOUSING, NO.2
W(POWER STEERING)
45516GROMMET, STEERING RACK HOUSING, NO.1
45518BRACKET, STEERING RACK HOUSING, NO.3
W(POWER STEERING)
45521RACK, STEERING
45522BUSH, STEERING RACK
sub45522-10050
45524CAP, STEERING RACK GUIDE SPRING
W(POWER STEERING)
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
W(POWER STEERING)
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
W(POWER STEERING)
45536BOOT, STEERING RACK, NO.2
W(POWER STEERING)
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
W(POWER STEERING)
45537AWASHER, CLAW(FOR STEERING RACK END LOCK)
45541PINION, STEERING
45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)
45545SCREW, PINION BEARING ADJUSTING
45545ANUT(FOR PINION BEARING ADJUSTING SCREW)
9011910247
main90119-10247
9017014012
main90170-14012
9017910077
main90179-10077
9326963020
main93269-63020
9538103020
main95381-03020
35 parts on this diagram · 3 diagrams in section
