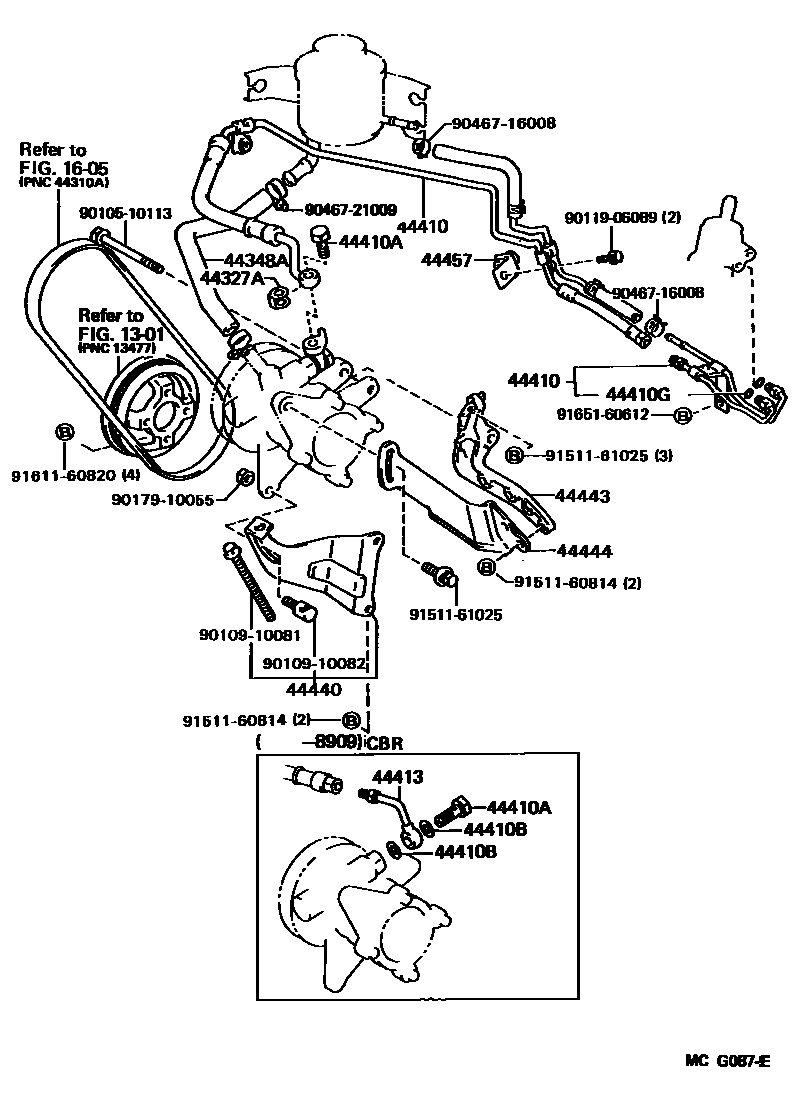

POWER STEERING TUBE

1301

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEL31..TER¥260198908-199009

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-16011iEL31..TER..CBR¥2,770198808-199009

main44348-16040iEL31..EFI¥4,000198908-199009

44410TUBE ASSY, PRESSURE FEED

main44410-16030iEL31..TER¥7,800198808-198908

GEAR SIDE

sub44410-16031¥7,800

main44410-16031iEL31..TER¥7,800198908-199009

GEAR SIDE

main44410-16041iEL31..TER..CBR¥26,300198808-198909

PUMP SIDE

main44410-16110iEL31..EFI¥27,400198908-199009

PUMP SIDE

main44410-16120iEL31..TER..CBR¥27,300198909-199009

PUMP SIDE

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEL31..TER..CBR¥610198808-198909

main90401-16017iEL31..EFI¥610198908-199009

sub90401-16008¥610

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16242iEL31..TER..CBR¥190198808-198909

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009iEL31..EFI¥260198808-199009

44413TUBE, PRESSURE FEED, NO.1

main44413-16050iEL31..TER..CBR¥3,750198808-198909

44440BRACKET ASSY, PUMP

main44440-16020iEL31..CND¥3,510198808-199009

44443BRACKET, PUMP

main44443-16010iEL31..CND¥6,000198808-199009

44444STAY, PUMP, REAR

main44444-16011iEL31..CND¥1,700198808-199009

44457BRACKET, TUBE SUPPORT, NO.1

main44457-16030iEL31..TER¥270198808-199009

9010510113

main90105-10113¥160

9010910081

main90109-10081¥320

9010910082

main90109-10082¥250

9011906089

main90119-06089¥160

9017910055

main90179-10055¥200

9046716008

main90467-16008¥240

9046721009

main90467-21009¥370

9151160814

main91511-60814¥140

9151161025

main91511-61025¥240

9161160820

main91611-60820¥200

9165160612

main91651-60612¥90

24 parts on this diagram · 1 diagram in section
