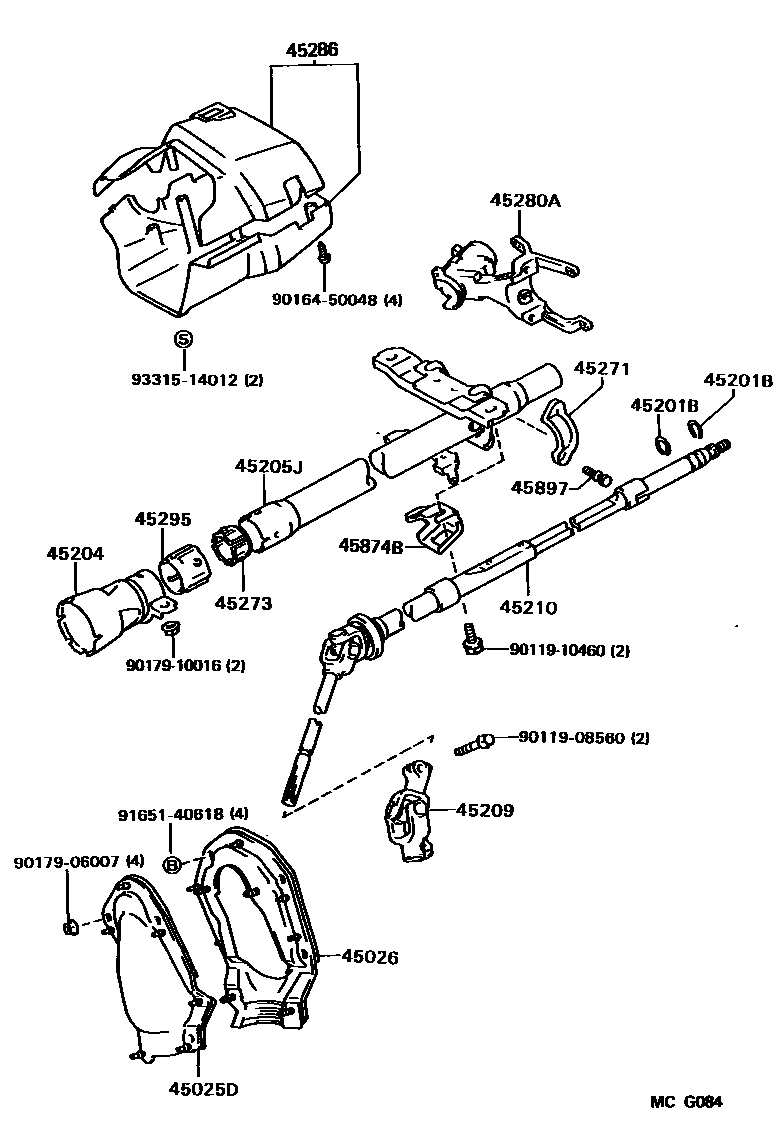

STEERING COLUMN & SHAFT

0001 1 0002 1TILT STEERING

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-16080iEL31198808-199009

main45025-16100iEL31..TER198808-199009

W(POWER STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-16020iEL31198808-199009

main45026-16040iEL31..TER198808-199009

W(POWER STEERING)

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iEL31198808-199009

T=1.20

main90520-17196iEL31198808-199009

T=1.35-1.45

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-16011iEL31198808-199009

main45204-16020iEL31198808-198908

W(TILT STEERING)

main45204-16030iEL31..TER198808-198908

W(TILT STEERING & POWER STEERING)

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-16050iEL31198808-198809

sub45205-16051

main45205-16051iEL31198809-199009

main45205-16060iEL31..EZ198808-198809

W(TILT STEERING)

sub45205-16061

main45205-16061iEL31..EZ198809-198908

W(TILT STEERING)

sub45205-16062

sub45804-16031

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-16020iEL31..5DS..DX;EL31..5DS..STD..USA;EL31..TER..(2DS,3DS)..CBR198808-199009

W(POWER STEERING)

main45209-16030iEL31198808-199009

45210SHAFT ASSY, STEERING MAIN

main45210-16091iEL31198808-199009

main45210-16110iEL31..5DS..DX;EL31..5DS..STD..USA;EL31..TER..(2DS,3DS)..CBR198808-199009

W(POWER STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iEL31198808-199009

45273BUSH, STEERING MAIN SHAFT

main45273-16010iEL31198808-199009

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-16050iEL31198808-198908

main45280-16060iEL31..MTM198908-199009

sub45280-16070

main45280-16070iEL31..3FC198908-199009

45286COVER, STEERING COLUMN

main45286-16906-01iEL31..TER198808-198908

NEW BLACK,TRIM2#

sub45286-16906

main45286-16906-04iEL31..DX,STD198808-198908

BLUE,TRIM8#

sub45286-16906

main45286-16906-05iEL31..DX,STD198808-198908

DARK BEIGE,TRIM4#

sub45286-16906

main45286-16908-01iEL31198808-198908

W(TILT STEERING),NEW BLACK,TRIM2#

sub45286-16908

main45286-16908-04iEL31..DX,STD198808-198908

W(TILT STEERING),BLUE,TRIM8#

sub45286-16908

main45286-16908-05iEL31..DX,STD198808-198908

W(TILT STEERING),DARK BEIGE,TRIM4#

sub45286-16908

main45286-16911-01iEL31..CBR198908-199009

NEW BLACK,TRIM2#

sub45286-16911

main45286-16911-04iEL31..(DX,STD)..CBR198908-199009

BLUE,TRIM8#

sub45286-16911

main45286-16911-06iEL31..(DX,STD)..CBR198908-199009

BROWN,TRIM4#

sub45286-16911

main45286-16912-01iEL31..EFI198908-199009

NEW BLACK,TRIM2#

sub45286-16912

main45286-16912-01iEL31..EFI198908-199009

W(TILT STEERING),NEW BLACK,TRIM2#

sub45286-16912

main45286-16912-04iEL31..EFI198908-199009

BLUE,TRIM8#

sub45286-16912

main45286-16912-04iEL31..EFI198908-199009

W(TILT STEERING),BLUE,TRIM8#

sub45286-16912

main45286-16912-06iEL31..EFI198908-199009

BROWN,TRIM4#

sub45286-16912

main45286-16912-06iEL31..EFI198908-199009

W(TILT STEERING),BROWN,TRIM4#

sub45286-16912

45295BUSH, STEERING COLUMN TUBE

main45295-16010iEL31198808-199009

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-16020iEL31198808-198908

45897BOLT, STEERING LOCK SET

main45897-12020iEL31198808-198910

main45897-32010iEL31198910-199009

9011908560

main90119-08560

9011910460

main90119-10460

9016450048

main90164-50048

9017906007

main90179-06007

9017910016

main90179-10016

9165140618

main91651-40618

9331514012

main93315-14012

21 parts on this diagram · 2 diagrams in section
