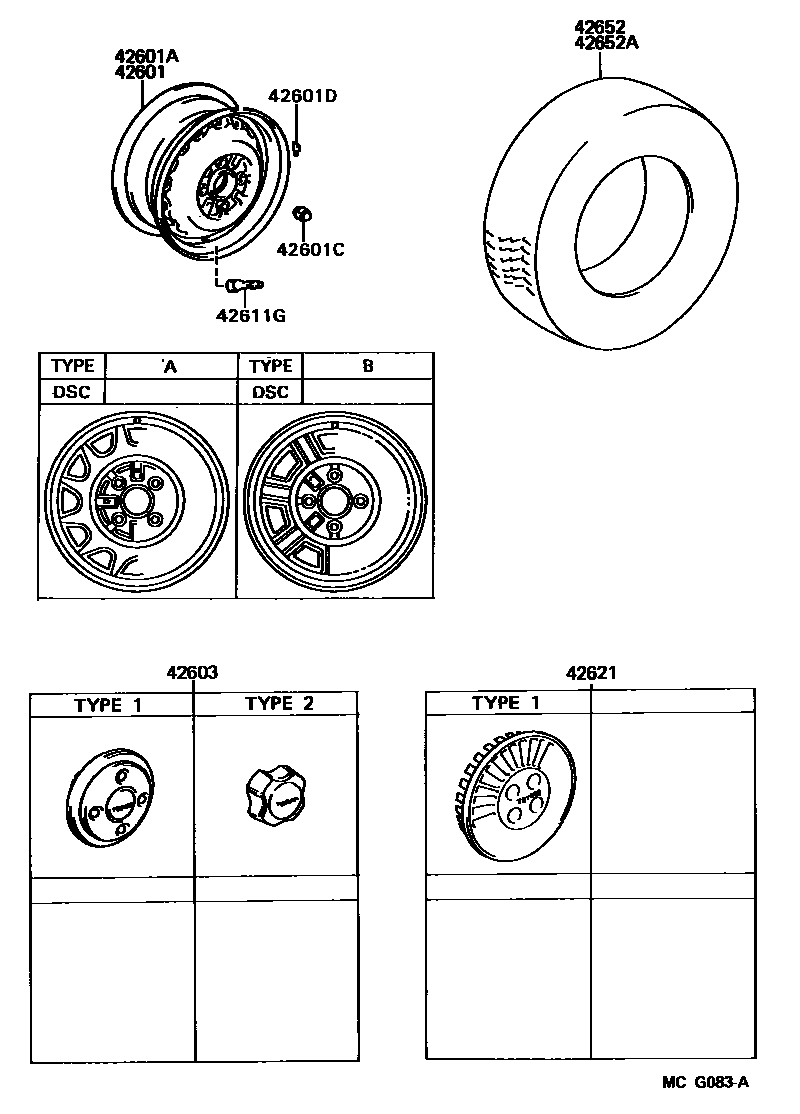

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
13X4.5J,SILVER,041 ,164 ,205 ,3E6 ,741 ,8D8 ,8G1
13X4.5J,SILVER,041 ,164 ,205 ,3E6 ,3H4 ,4H6 ,4J3 ,741 ,8D8 ,8G1 ,168
13X5J,DARK GRAY,041 ,164 ,168 ,205 ,3E6 ,3H4 ,4H6 ,741 ,8D8 ,8G1
13X5J,DARK GRAY,041 ,164 ,205 ,3E6 ,3H4 ,4H6 ,4J3 ,741 ,8D8 ,8G1
13X5J,DARK GRAY,041 ,164 ,205 ,3E6 ,3H4 ,4H6 ,4J3 ,741 ,8D8 ,8G1 ,168
42601AWHEEL, DISC (FOR SPARE)
42601CNUT, HUB (FOR AXLE)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
15G
25G
35G
45G
55G
65G
75G
5G
42603ORNAMENT SUB-ASSY, WHEEL HUB
42611GVALVE (FOR TUBELESS TIRE)
42621CAP, WHEEL
42652TIRE
main42652-12670iEL31..5DS..STD..USA;EL31..2DS..STD..EFI;EL31..(2DS,3DS)..(3FC,5F)..(BASE,STD)..CBR198808-199009
155SR13,ALL SEASON
155SR13
P145/80R13 SP4N
42652ATIRE (FOR SPARE)
T105/70D14
9 parts on this diagram · 1 diagram in section
