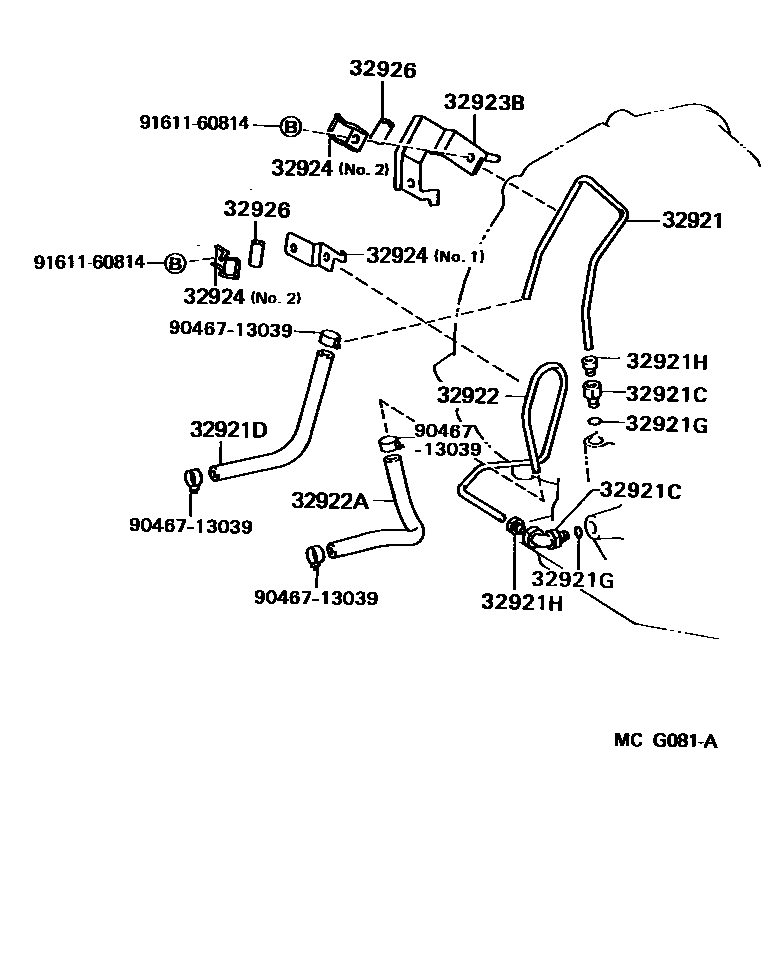

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-16061iEL31..3FC198808-199005

main32921-16062iEL31..3FC199005-199009

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iEL31..3FC198808-199009

INLET

main90407-14003iEL31..3FC198808-199009

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-16030iEL31..3FC198808-199005

sub32941-16060

main32941-16060iEL31..3FC199005-199009

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iEL31..3FC198808-199009

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iEL31..3FC198808-199009

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-16070iEL31..3FC198808-199005

main32922-16071iEL31..3FC199005-199009

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15015iEL31..3FC198808-199005

sub90445-15046

main90445-15046iEL31..3FC199005-199009

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-16031iEL31..3FC198808-199009

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-16040iEL31..3FC198808-199009

main90462-10082iEL31..3FC198808-199009

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iEL31..3FC198808-199009

L=25,ID=8

9046713039

main90467-13039

9161160814

main91611-60814

12 parts on this diagram · 1 diagram in section
