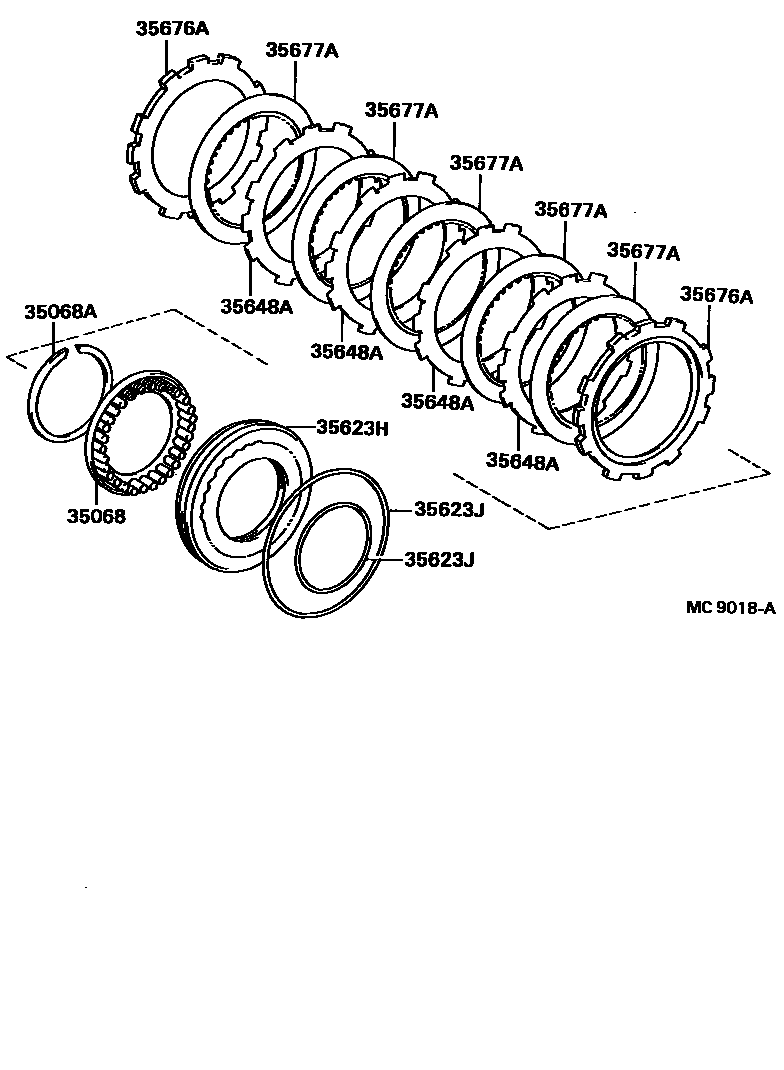

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iEL31..3FC¥2,210198808-199009

sub35068-20010¥2,120

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iEL31..3FC¥230198808-199009

35623HPISTON, 1ST & REVERSE BRAKE

main35623-32020iEL31..3FC¥3,850198808-199009

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iEL31..3FC¥600198808-199009

INNER

main90301-99022iEL31..3FC¥940198808-199009

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iEL31..3FC¥2,190198808-199009

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iEL31..3FC¥4,590198808-199009

T=3.5

sub35676-12030¥4,810

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32040iEL31..3FC¥2,060198808-199009

7 parts on this diagram · 1 diagram in section
