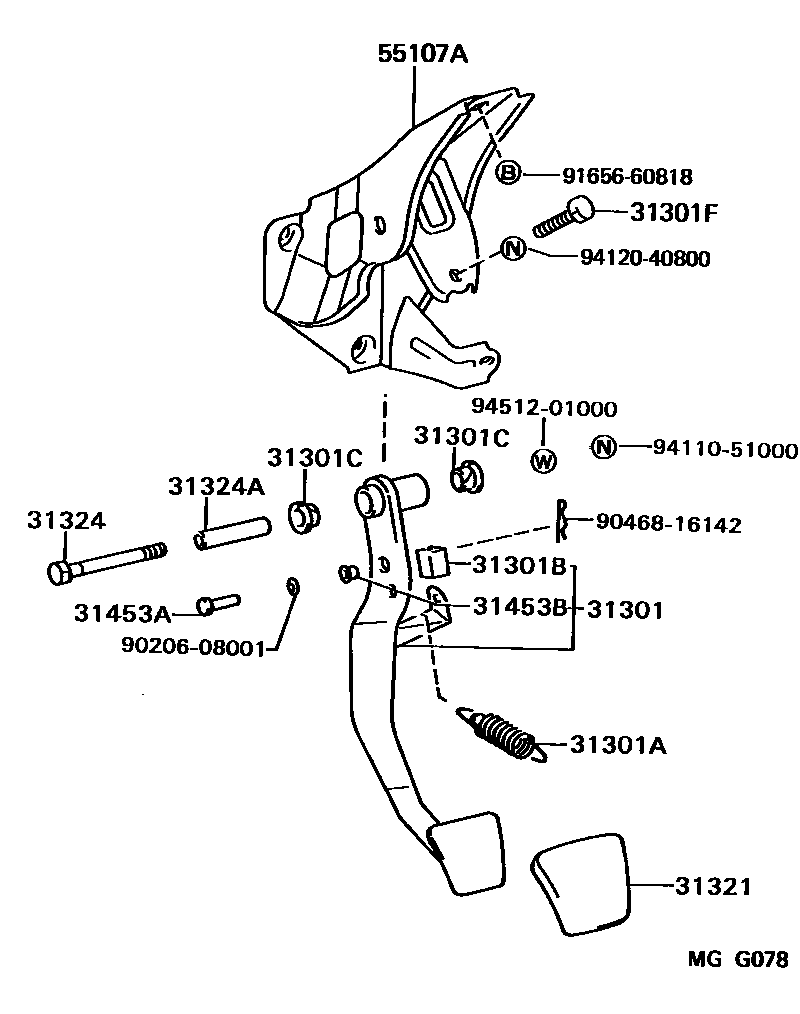

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-16070iEL31..MTM198808-199009

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14023iEL31..MTM198808-199005

sub90507-14036

main90507-14036iEL31..MTM199005-199009

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main47131-10010iEL31..MTM198808-199009

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192iEL31..MTM198808-199009

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iEL31..MTM198808-199009

31321PAD, CLUTCH PEDAL

main31321-14020iEL31..MTM198808-199009

31324SHAFT, CLUTCH PEDAL

main90101-10015iEL31..MTM198808-199009

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iEL31..MTM198808-199009

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iEL31..MTM198808-199009

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iEL31..MTM198808-199009

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-16050iEL31..MTM198808-199009

9020608001

main90206-08001

9046816142

main90468-16142

9165660818

main91656-60818

9411051000

main94110-51000

9412040800

main94120-40800

9451201000

main94512-01000

17 parts on this diagram · 2 diagrams in section
