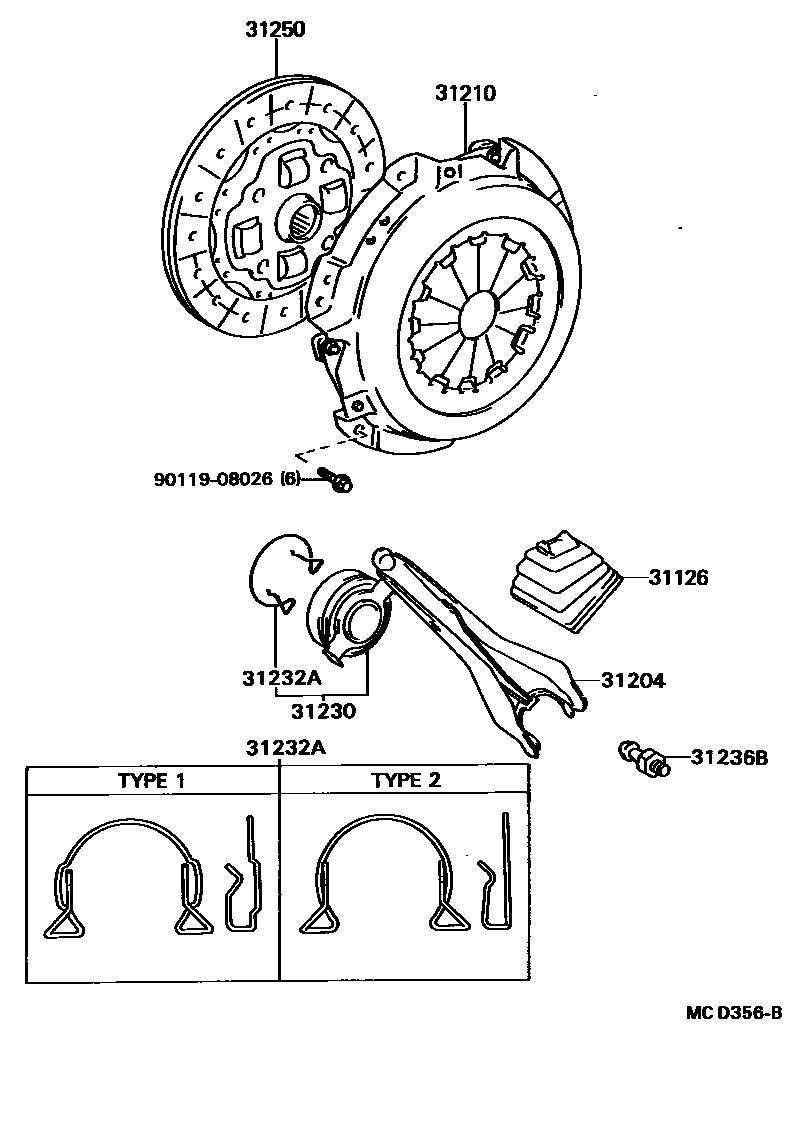

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iEL31..MTM198808-199009

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEL31..MTM198808-199009

31210COVER ASSY, CLUTCH

main31210-16070iEL31..TER..MTM198808-198907

sub31210-16071

main31210-16071iEL31..TER..MTM198907-199009

sub31210-16130

main31210-16090iEL31..EZ198808-198911

sub31210-16091

main31210-16091iEL31..EZ198911-199009

sub31210-16092

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iEL31..MTM198808-199009

sub31230-16061

31232ACLIP, RELEASE BEARING HUB

main31232-12040iEL31..MTM198808-199009

TYPE 2

main31232-16031iEL31..MTM198808-199009

TYPE 1

31236BSUPPORT, RELEASE FORK

main31236-12011iEL31..MTM198808-199009

31250DISC ASSY, CLUTCH

main31250-12155iEL31..EZ198808-199006

sub31250-12156

main31250-12156iEL31..EZ199006-199009

sub31250-12310

main31250-12170iEL31..5DS..5F..STD..CND198808-199006

sub31250-12171

main31250-12171iEL31..TER..MTM199006-199009

sub31250-12172

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
