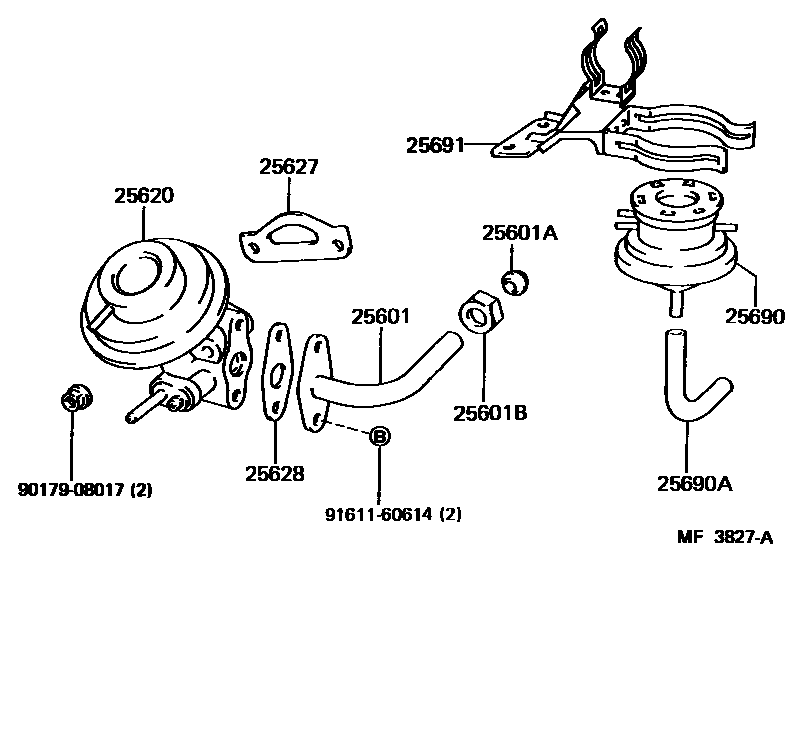

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-11010i3E..EL31198808-199009

main25601-11040i3E..EL31..USA198808-198908

CALIFORNIA SPEC

main25601-11040i3E..EL31..MTM..USA198908-199009

CALIFOLNIA SPEC

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-14005i3E..EL31198808-199009

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22011i3E..EL31198808-199009

25620VALVE ASSY, EGR

main25620-11070i3E..EL31..MTM198808-199009

main25620-11080i3E..EL31..3FC198808-199009

main25620-11090i3EE..EL31198908-199009

25627GASKET, EGR VALVE

main25627-11010i3E..EL31198808-199001

sub25627-11011

main25627-11011i3E..EL31199001-199009

main25627-11020i3EE..EL31198908-199009

25628GASKET, EGR INLET

main25628-11010i3E..EL31198808-199009

25690MODULATOR ASSY, EGR VACUUM

main25870-11050i3E..EL31..MTM198808-199009

main25870-11060i3E..EL31..3FC198808-199009

main25870-11070i3EE..EL31198908-199009

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11080i3E#..EL31198808-199009

25691BRACKET, EGR VACUUM MODULATOR

main25691-11030i3E..EL31198808-199009

main25691-11040i3EE..EL31198908-199009

9017908017

main90179-08017

9161160614

main91611-60614

11 parts on this diagram · 2 diagrams in section
