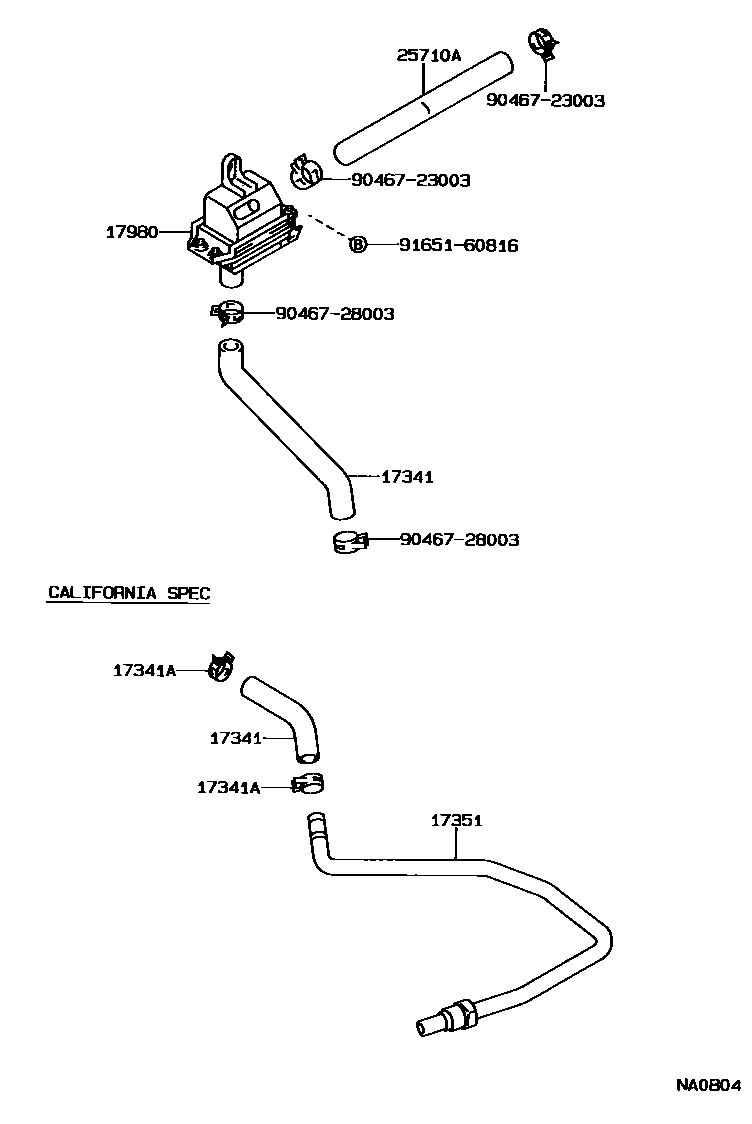

MANIFOLD AIR INJECTION SYSTEM

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-11020i3E..EL31..USA198808-198904

CALIFORNIA SPEC

main17341-11021i3E..EL31..USA198904-199009

CALIFOLNIA SPEC

main17341-11050i3E..EL31198808-199009

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-20005i3E..EL31..MTM..USA198808-199009

CALIFORNIA SPEC

sub96134-41900

17351MANIFOLD, AIR INJECTION

main17306-11020i3E..EL31..USA198808-199009

CALIFORNIA SPEC

17980FILTER ASSY, AIR SUCTION

main17980-11011i3E..EL31198808-199009

25710AHOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)

main90445-15010i3E..EL31198808-199009

9046723003

main90467-23003

9046728003

main90467-28003

9165160816

main91651-60816

8 parts on this diagram · 1 diagram in section
