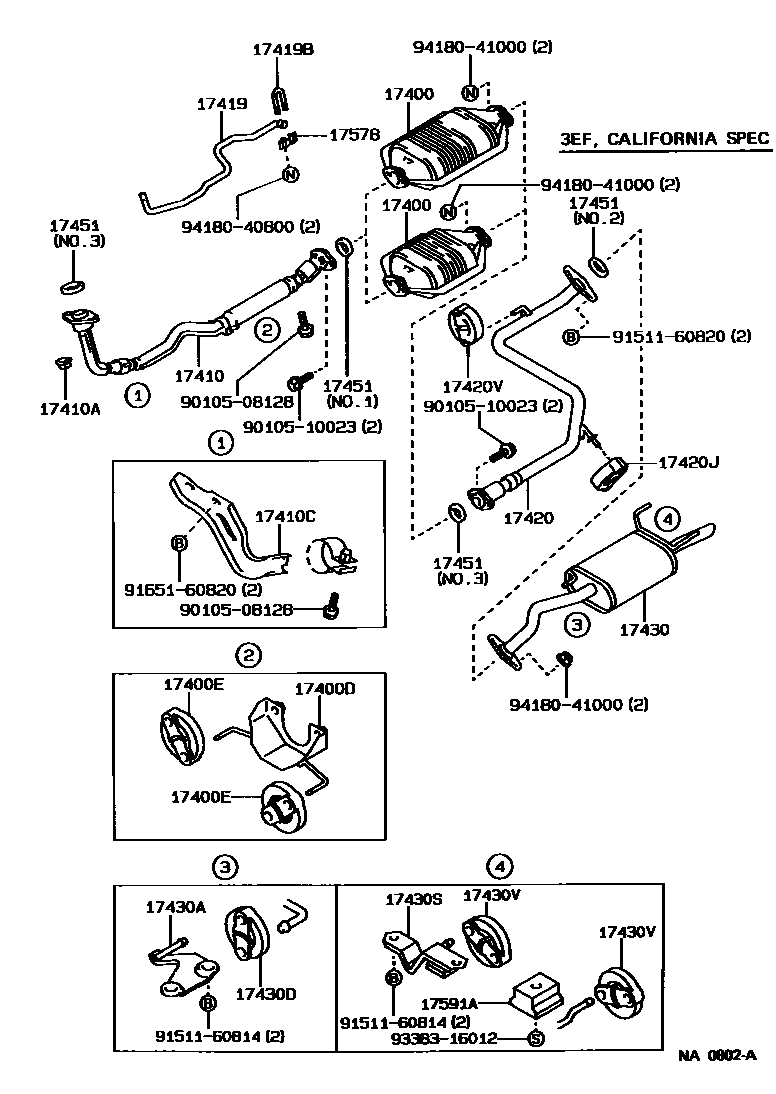

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
CALIFOLNIA SPEC
CALIFORNIA SPEC
17400DBRACKET, CATALYTIC CONVERTER SUPPORT
sub17503-11030
17400ERING, CATALYTIC CONVERTER
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17419PIPE, CONVERTER AIR INLET
17419BBOLT, U(FOR CONVERTER AIR INLET PIPE)
17420PIPE ASSY, EXHAUST, CENTER
CALIFORNIA SPEC
CALIFOLNIA SPEC
17420JBOLT OR RING, EXHAUST PIPE CENTER
17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
17578CLAMP, PIPE
17591ASTOPPER, EXHAUST PIPE SUPPORT
9010508128
main90105-08128
9010510023
main90105-10023
9151160814
main91511-60814
9151160820
main91511-60820
9165160820
main91651-60820
9338316012
main93383-16012
9418040800
main94180-40800
9418041000
main94180-41000
27 parts on this diagram · 1 diagram in section
