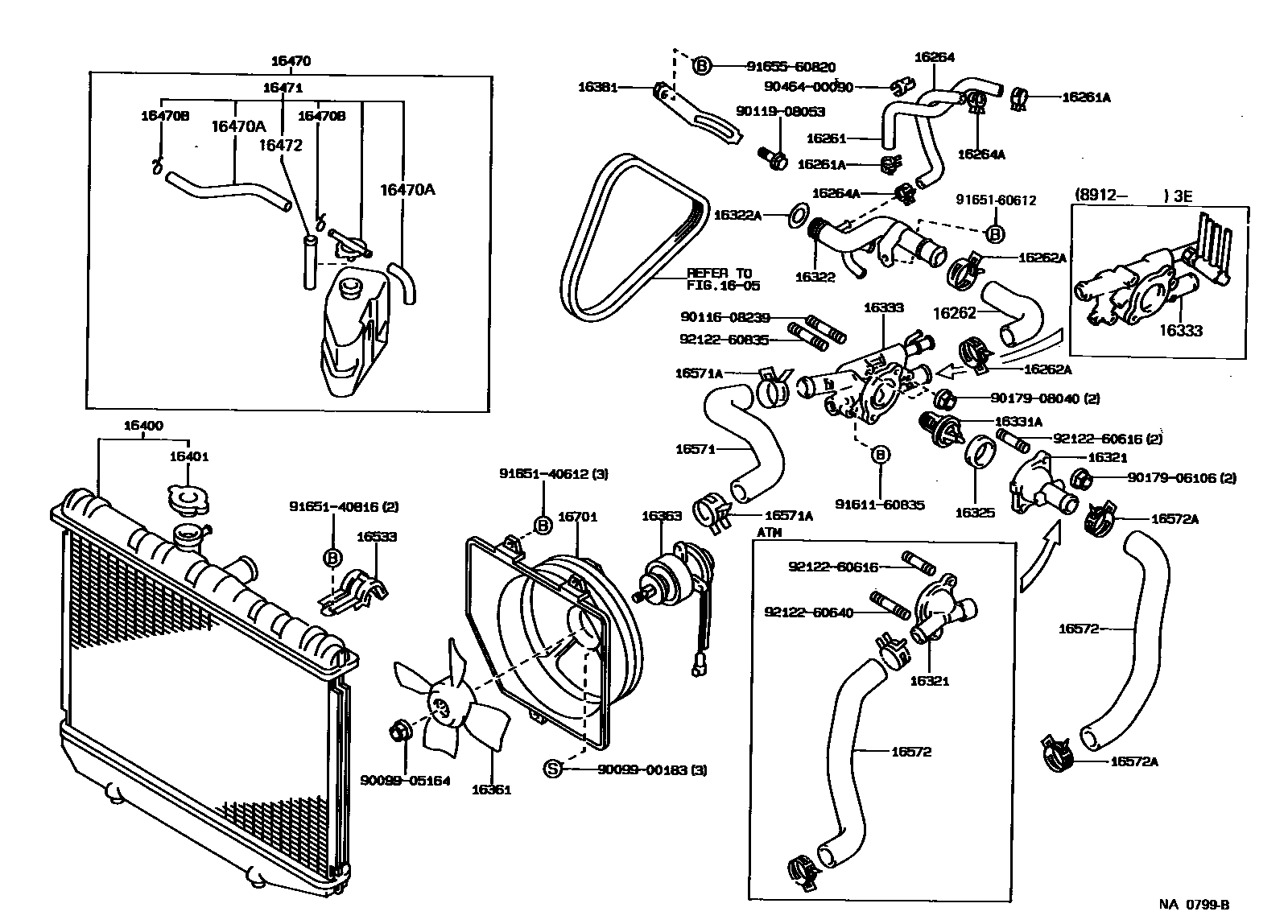

RADIATOR & WATER OUTLET
1605
16262ACLIP(FOR WATER INLET HOSE)
sub90467-34004
16321INLET, WATER
16322PIPE, WATER INLET
sub16322-11032
16322ARING, O(FOR WATER INLET)
sub96761-35028
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16331ATHERMOSTAT
*WAX 82-95
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
PUERTO RICO SPEC
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
PUERTO RICO SPEC
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
HOUSING SIDE
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
INLET SIDE
9009900183
main90099-00183
9009905164
main90099-05164
9011608239
main90116-08239
9011908053
main90119-08053
9017906106
main90179-06106
9017908040
main90179-08040
9046400090
main90464-00090
9161160835
main91611-60835
9165140612
main91651-40612
9165140816
main91651-40816
9165160612
main91651-60612
9165560820
main91655-60820
9212260616
main92122-60616
9212260640
main92122-60640
9212260835
main92122-60835
44 parts on this diagram · 2 diagrams in section
