VENTILATION HOSE

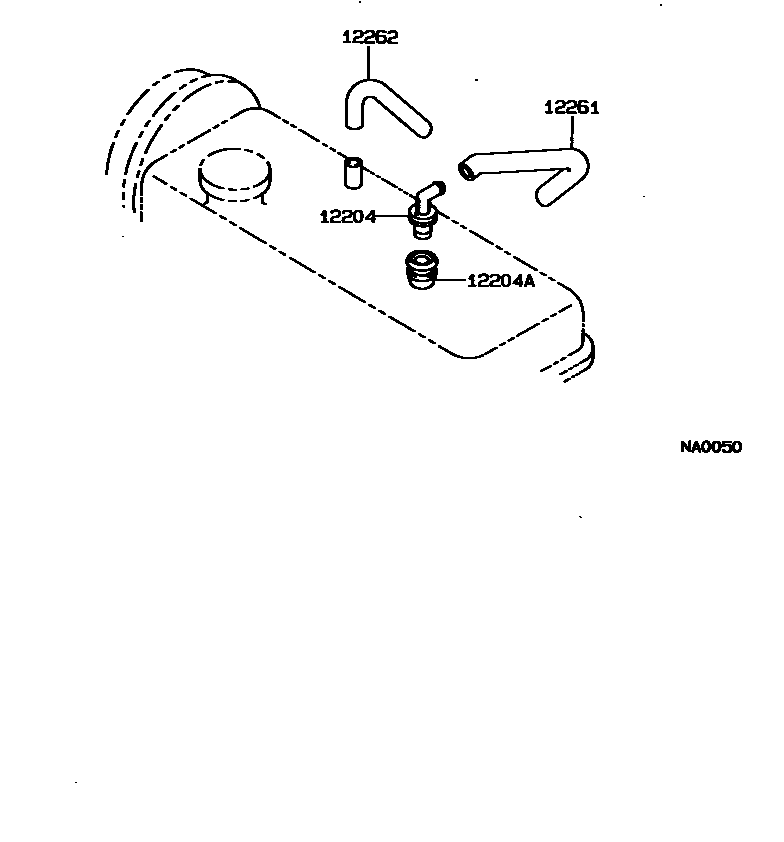

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

main12204-10020i¥1,810198808-199009

sub12204-10030¥1,780

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18006i¥130198808-199009

12261HOSE, VENTILATION

main12261-11050i¥1,090198808-199009

main12261-11080i¥680198908-199009

12262HOSE, VENTILATION, NO.2

main12262-10020i¥540198808-199009

main12262-11010i¥750198908-198909

sub12262-11040¥880

main12262-11040i¥880198909-199009

4 parts on this diagram · 1 diagram in section
