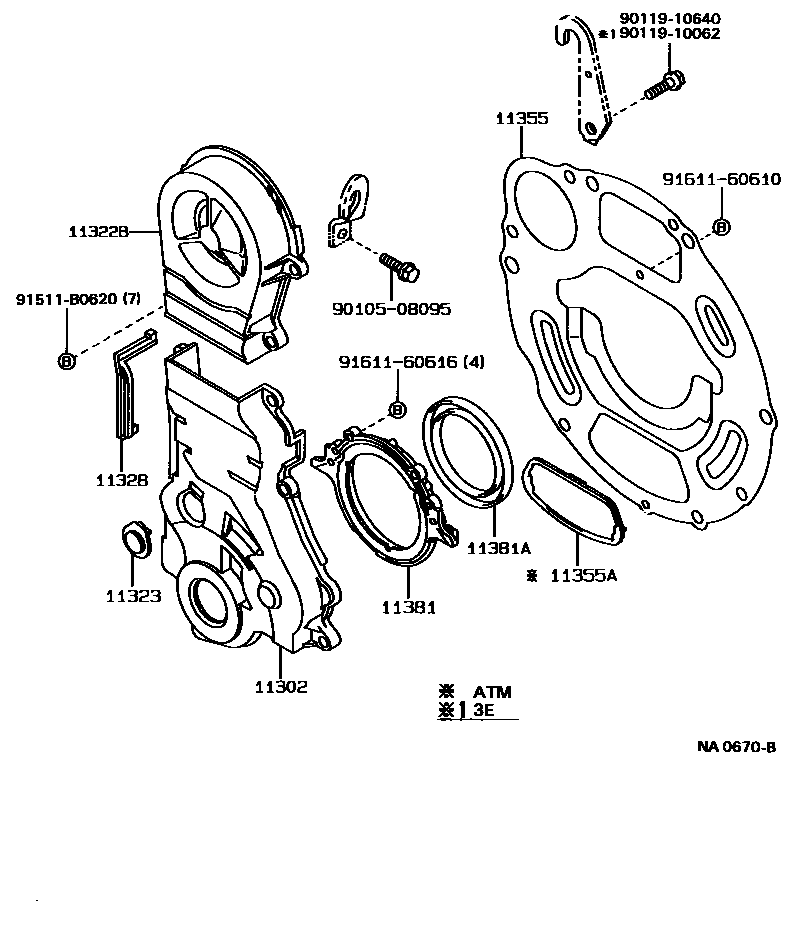

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11031i3E#..EL31198808-199009

11322BCOVER, TIMING BELT, NO.2

main11303-11010i3E#..EL31198808-199009

11323COVER, TIMING GEAR, NO.3

main11323-10011i3E#..EL31198808-199009

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-11020i3E#..EL31198808-199009

11355PLATE, REAR END

main11355-10011i3E..EL31..MTM198808-199009

sub11355-10012

main11355-11011i3E#..EL31..3FC198808-199009

sub11355-11012

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01548i3E#..EL31..3FC198808-199009

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i3E#..EL31198808-199009

11381ASEAL, ENGINE REAR OIL

main90311-80007i3E#..EL31198808-199009

sub90311-80012

9010508095

main90105-08095

9011910062

main90119-10062

9011910640

main90119-10640

91511B0620

main91511-B0620

9161160610

main91611-60610

9161160616

main91611-60616

14 parts on this diagram · 1 diagram in section
