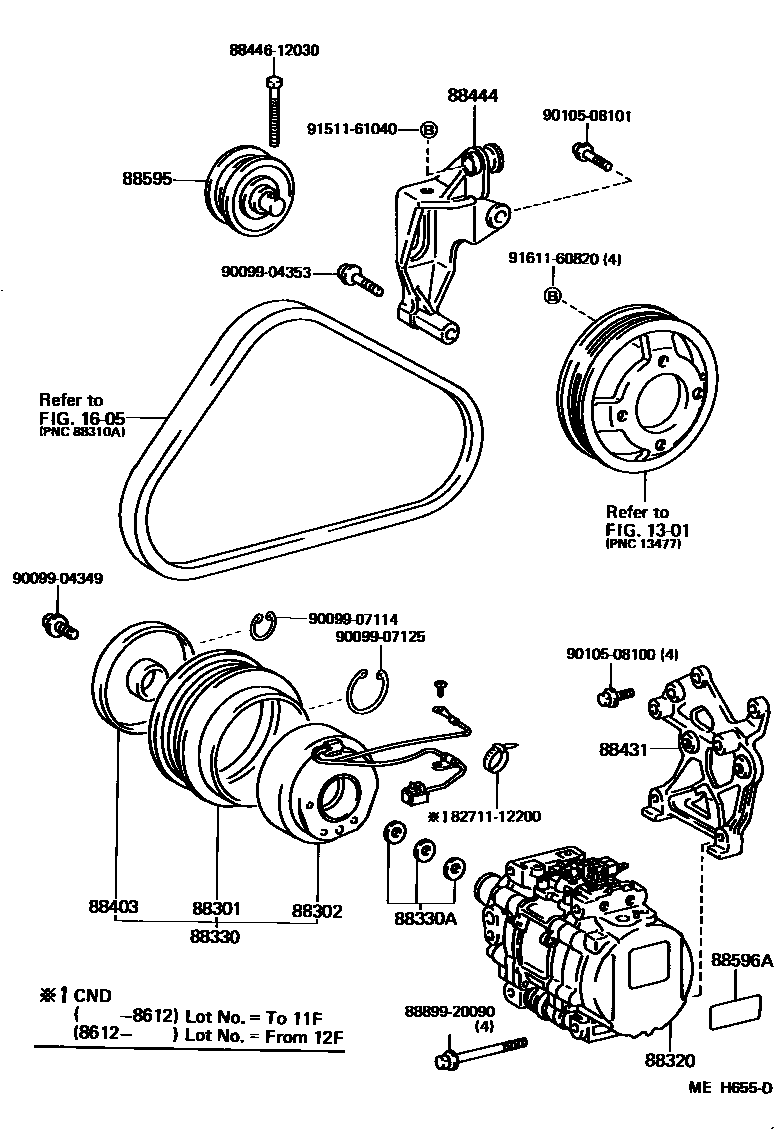

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1301

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-16010iEL31..(3FC,5F)..USA198608-198612

sub88412-16030

main88412-16030iEL31..CND198612-198805

sub88412-32060

main88412-16050iEL31..TER..USA198608-198805

W/SUB CONDENSER

main88412-16050iEL31..CND198805-198808

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16020iEL31..(3FC,5F)..USA198608-198709

sub88411-16021

main88411-16021iEL31..TER..USA198709-198808

sub88411-60030

main88411-16021iEL31..TER..USA198608-198805

W/SUB CONDENSER

sub88411-60030

88320COMPRESSOR ASSY, COOLER

main88320-12670iEL31..TER..USA198805-198808

W/PS

sub88320-12810

main88320-16050iEL31..(3FC,5F)..USA198608-198612

sub88320-12860

main88320-16051iEL31..(DX,STD)..CND198612-198805

sub88320-12860

main88320-16060iEL31..(DX,STD)..CND198608-198612

W/PS

main88320-16061iEL31..CND198612-198805

W/PS

sub88320-12530

main88320-16110iEL31..TER..USA198805-198808

sub88320-12820

88330CLUTCH ASSY, MAGNET

main88410-16020iEL31..(3FC,5F)..USA198608-198612

sub88410-16021

main88410-16021iEL31..(3FC,5F)..USA198612-198805

main88410-16050iEL31..CND198805-198808

sub88410-1A080

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iEL31..(3FC,5F)..USA198608-198808

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16010iEL31..TER..USA198608-198805

sub88403-16011

main88403-16011iEL31..CND198709-198808

main88403-16011iEL31..TER..USA198608-198709

W/SUB CONDENSER

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16040iEL31..(3FC,5F)..USA198608-198808

88444BRACKET, IDLE PULLEY

main88444-16030iEL31..(3FC,5F)..USA198608-198808

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12170iEL31..TER..USA198608-198808

88596APLATE, CAUTION

main88356-12010iEL31..TER..USA198701-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8844612030BOLT, IDLE PULLEY

main88446-12030

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009904353

main90099-04353

9009907114

main90099-07114

9009907125

main90099-07125

9010508100

main90105-08100

9010508101

main90105-08101

9151161040

main91511-61040

9161160820

main91611-60820

23 parts on this diagram · 2 diagrams in section
