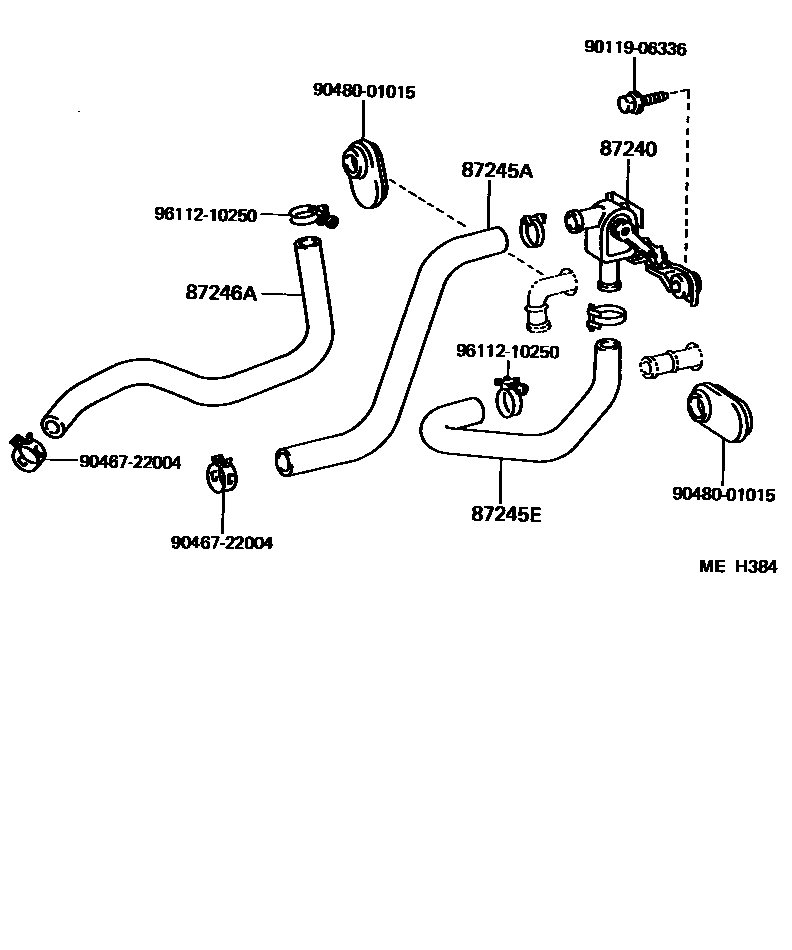

HEATING & AIR CONDITIONING - WATER PIPING

87240VALVE ASSY, HEATER WATER

main87240-16060iEL31198608-198805

main87240-16061iEL31198805-198808

87245AHOSE, HEATER WATER, INLET A

main87245-16220iEL31198608-198808

sub87245-16221

87245EHOSE, HEATER WATER, INLET E

main87245-16240iEL31198608-198808

87246AHOSE, HEATER WATER, OUTLET A

main87245-16270iEL31198608-198808

9011906336

main90119-06336

9046722004

main90467-22004

9048001015

main90480-01015

9611210250

main96112-10250

8 parts on this diagram · 1 diagram in section
