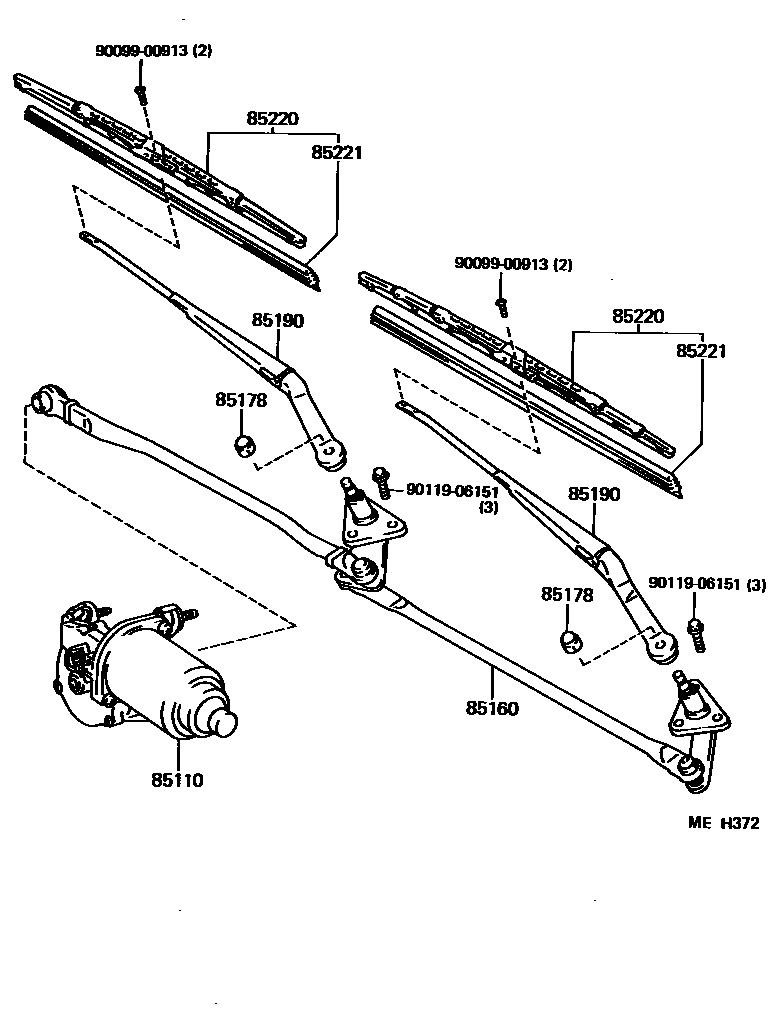

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-16250iEL31..USA198608-198803

sub85110-16252

main85110-16252iEL31..USA198803-198808

sub85110-16460

main85110-16260iEL31..USA198608-198803

COLD SPEC

sub85110-16262

main85110-16262iEL31..CND198803-198808

COLD SPEC

sub85110-16470

85160LINK ASSY, WINDSHIELD WIPER

main85160-16190iEL31..USA198608-198808

sub85160-16200

main85160-16200iEL31..CND198608-198808

COLD SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033iEL31198608-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-16170iEL31198608-198808

LH

sub85190-16171

main85210-16040iEL31198608-198808

RH

sub85210-16041

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16670iEL31198608-198808

RH

sub85220-16671

main85220-32280iEL31198608-198808

LH

sub85220-3A060

85221BLADE, WINDSHIELD WIPER

main85221-16100iEL31198608-198808

RH

sub85223-18010

main85221-32060iEL31198608-198808

LH

sub85221-30130

9009900913

main90099-00913

9011906151

main90119-06151

8 parts on this diagram · 1 diagram in section
