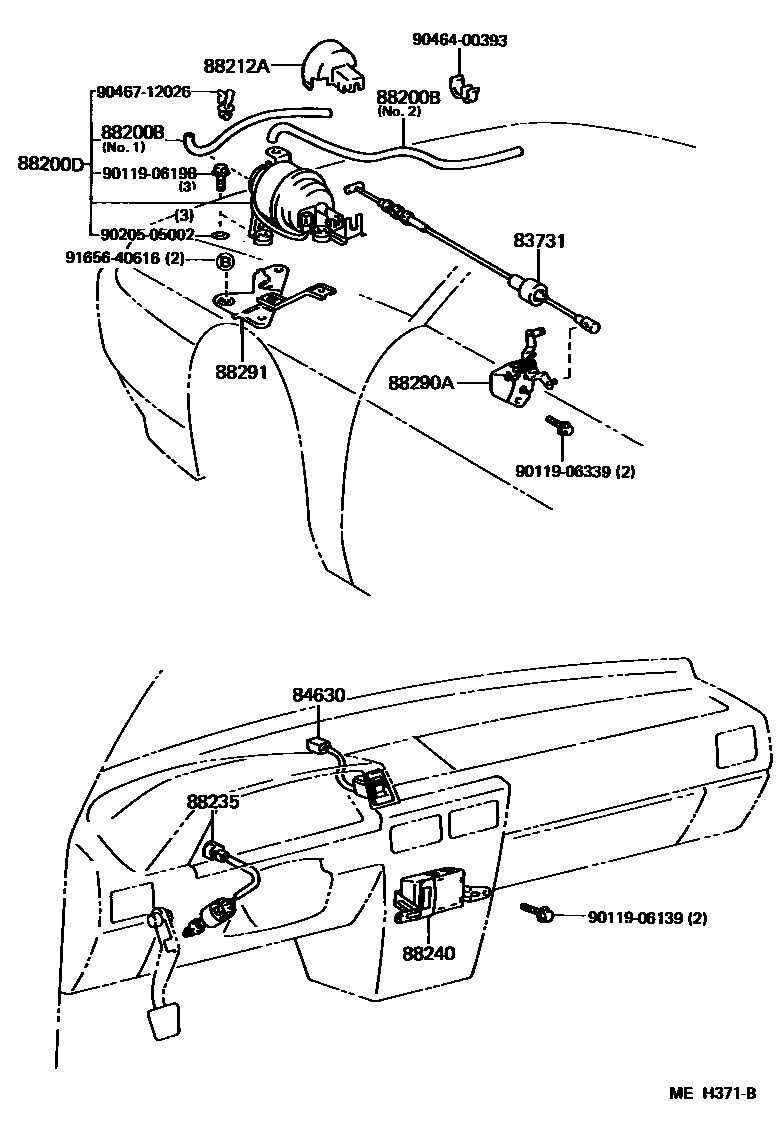

CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-16010iEL31..DX198608-198808

sub83731-16011

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-16020iEL31..DX198608-198808

88200BHOSE, CRUISE CONTROL VACUUM

main90447-04098iEL31..DX198608-198808

NO.2

main90999-92003iEL31..DX198803-198808

L=130,NO.1

main95411-19960iEL31..DX198608-198803

*H,L=130,MARK=#*,NO.1

sub90999-92003

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-16020iEL31..DX198608-198801

sub88200-16021

main88200-16021iEL31..DX198801-198808

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-16010iEL31..DX198608-198808

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010iEL31..5F..DX198608-198808

88240COMPUTER ASSY, CRUISE CONTROL

main88240-16020iEL31..DX198608-198808

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-16010iEL31..DX198608-198808

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-16020iEL31..DX198608-198808

9011906139

main90119-06139

9011906198

main90119-06198

9011906339

main90119-06339

9020505002

main90205-05002

9046400393

main90464-00393

9046712026

main90467-12026

9165640616

main91656-40616

16 parts on this diagram · 1 diagram in section
