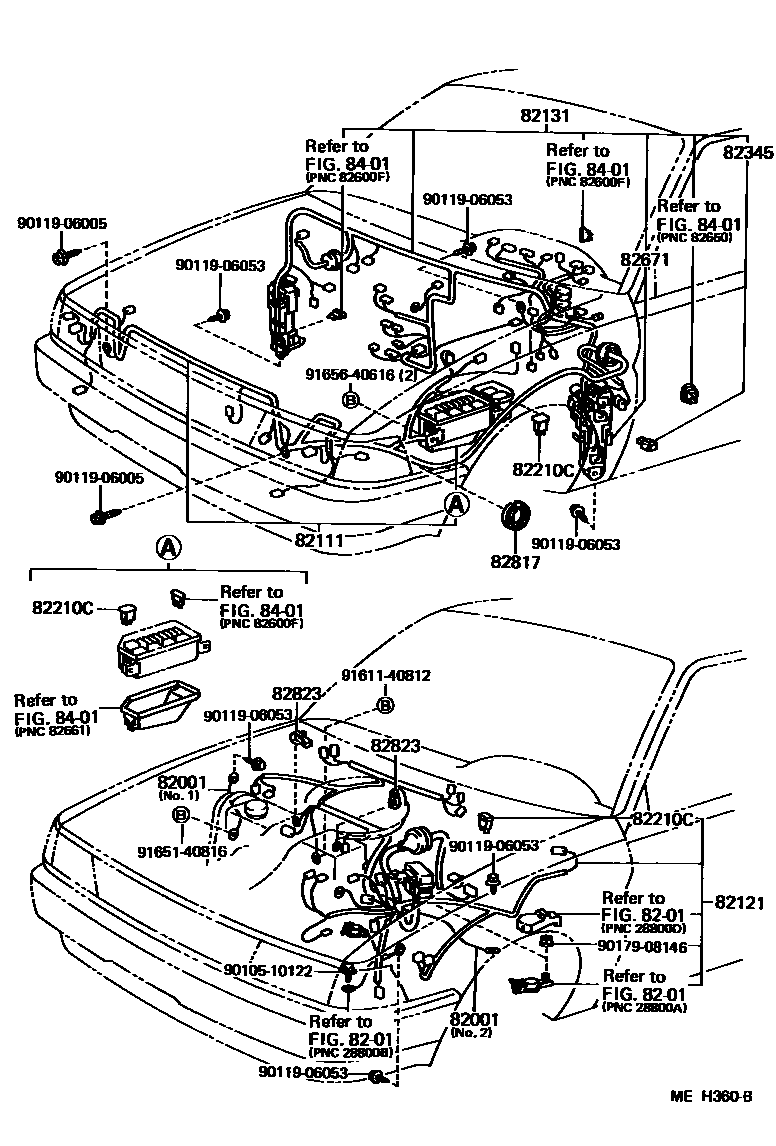

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

82001CABLE, BOND, NO.1

main90980-07242iEL31198608-198808

NO.2

main90980-07282iEL31198608-198808

NO.1

8201

82111WIRE, ENGINE ROOM MAIN

main82111-16460iEL31..B..CND;EL31..(3DS,5DS)..(DX,STD)198708-198805

W/*RW & W/O *TDS

main82111-16460iEL31198608-198708

main82111-16580iEL31..DX198608-198805

W/*CRC

main82111-16610iEL31..DX,STD;EL31..B..CND198708-198805

main82111-16620iEL31..(2DS,3DS)..(DX,STD)..USA198708-198805

W/*TDS

main82111-16630iEL31..B198708-198805

main82111-16631iEL31..EZ198805-198808

sub82111-16632

main82111-16640iEL31..TER..B..USA198708-198805

W/*TDS

main82111-16700iEL31..DX,STD;EL31..B..CND198805-198808

sub82111-16701

main82111-16710iEL31..TER..B198805-198808

sub82111-16711

main82111-16720iEL31..B..CND;EL31..(3DS,5DS)..(DX,STD)198805-198808

W/*RW & W/O *TDS

sub82111-16721

main82111-16730iEL31..DX198805-198808

W/*CRC

sub82111-16731

main82111-16740iEL31..(2DS,3DS)..(DX,STD)..USA198805-198808

W/*TDS

sub82111-16741

main82111-16750iEL31..TER..B..USA198805-198808

W/*TDS

sub82111-16751

82121WIRE, ENGINE

main82121-16270iEL31..MTM..USA198608-198609

main82121-16271iEL31..MTM..USA198609-198710

sub82121-16272

main82121-16272iEL31..MTM..USA198710-198808

main82121-16280iEL31..3FC..USA198608-198609

main82121-16281iEL31..3FC..USA198609-198710

sub82121-16282

main82121-16282iEL31..3FC..USA198710-198808

main82121-16290iEL31..MTM..CND198608-198609

main82121-16291iEL31..MTM..CND198609-198708

main82121-16300iEL31..3FC..CND198608-198609

main82121-16301iEL31..3FC..CND198609-198708

main82121-16320iEL31..MTM..USA198608-198609

COLD SPEC

main82121-16321iEL31..MTM..USA198609-198710

COLD SPEC

sub82121-16322

main82121-16321iEL31..MTM..CND198708-198808

sub82121-16322

main82121-16322iEL31..MTM..USA198710-198808

COLD SPEC

main82121-16330iEL31..3FC..USA198608-198609

COLD SPEC

main82121-16331iEL31..3FC..CND198708-198710

sub82121-16332

main82121-16331iEL31..3FC..USA198609-198808

COLD SPEC

sub82121-16332

main82121-16332iEL31..3FC..CND198710-198808

82131WIRE, COWL

main82131-16730iEL31..STD..USA198608-198706

sub82131-16731

main82131-16731iEL31..(B,STD)..USA198706-198808

main82131-16750iEL31..CND198608-198808

sub82131-16751

main82131-16750iEL31..STD..USA198608-198706

COLD SPEC OR W/*RWD

sub82131-16751

main82131-16751iEL31..(B,STD)..USA198706-198808

COLD SPEC OR W/*RWD

main82131-16760iEL31198608-198706

W/*RW

sub82131-16761

main82131-16760iEL31..STD..USA198608-198808

W/*RWD & *RW;COLD SPEC & W/*RW

sub82131-16761

main82131-16761iEL31198706-198808

W/*RW

main82131-16770iEL31..DX198608-198706

W/*CRC OR W/*CRC & *RW

sub82131-16771

main82131-16771iEL31..DX198706-198808

W/*CRC OR W/*CRC & *RW

main82131-1G180iEL31..TER..(2DS,3DS)..USA198708-198808

W/*TDS

82210CFUSIBLE LINK

main90982-08188iEL31198608-198808

30A,TERM.:FEMALE,PNK,30A

main90982-08189iEL31198608-198808

40A,TERM.:FEMALE,GRN,40A

main90982-08190iEL31198608-198808

60A,TERM.:FEMALE,YEL,60A

82345DIODE

main82345-12050iEL31198611-198808

82671BLOCK, JUNCTION

main82660-12130iEL31198805-198808

main82671-16050iEL31198608-198805

sub82660-12130

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-22280iEL31198608-198808

82823CAP, TERMINAL, NO.1

main82823-20030iEL31..CND198608-198808

STARTER

main82823-20030iEL31..CND198608-198808

COLD SPEC,STARTER

main82823-22050iEL31198608-198808

ALTERNATOR

8401

9010510122

main90105-10122

9011906005

main90119-06005

9011906053

main90119-06053

9017908146

main90179-08146

9161140812

main91611-40812

9165140816

main91651-40816

9165640616

main91656-40616

18 parts on this diagram · 5 diagrams in section
