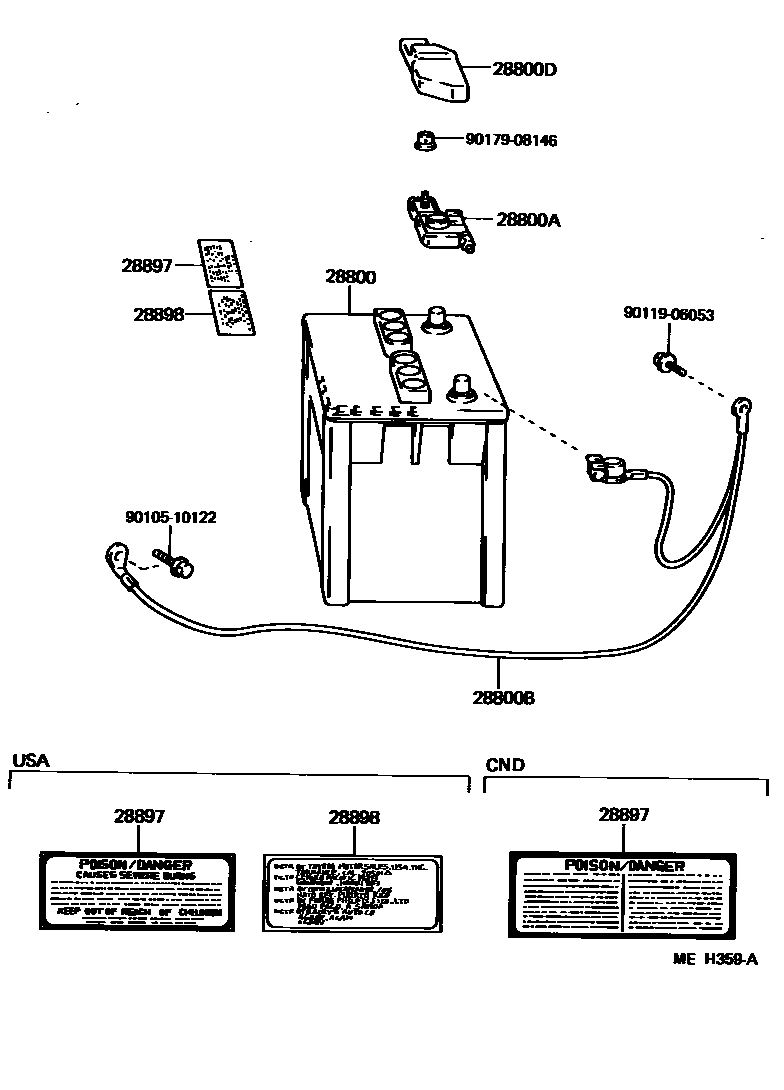

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i3E..EL31..USA198608-198808

55D23L,55D23L-MF

sub28800-42030

main28800-31031i3E..EL31..USA198608-198808

32C24L,32C24L

sub28800-31021

main28800-31200i3E..EL31..MTM..USA198608-198808

50D20L,50D20L-MF

main28800-64010i3E..EL31..CND198608-198808

55D23L,55D23L

sub28800-42041

28800ATERMINAL, BATTERY POSITIVE

main90982-05032i3E..EL31198608-198808

28800BCABLE, BATTERY TO GROUND

main82123-16060i3E..EL31198608-198808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16020i3E..EL31198608-198808

28897PLATE, BATTERY CAUTION

main28897-26010i3E..EL31..USA198608-198808

W/32C24L BATTERY

main28897-38010i3E..EL31..CND198608-198808

28898PLATE, BATTERY

main28898-26010i3E..EL31..USA198608-198808

9010510122

main90105-10122

9011906053

main90119-06053

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
