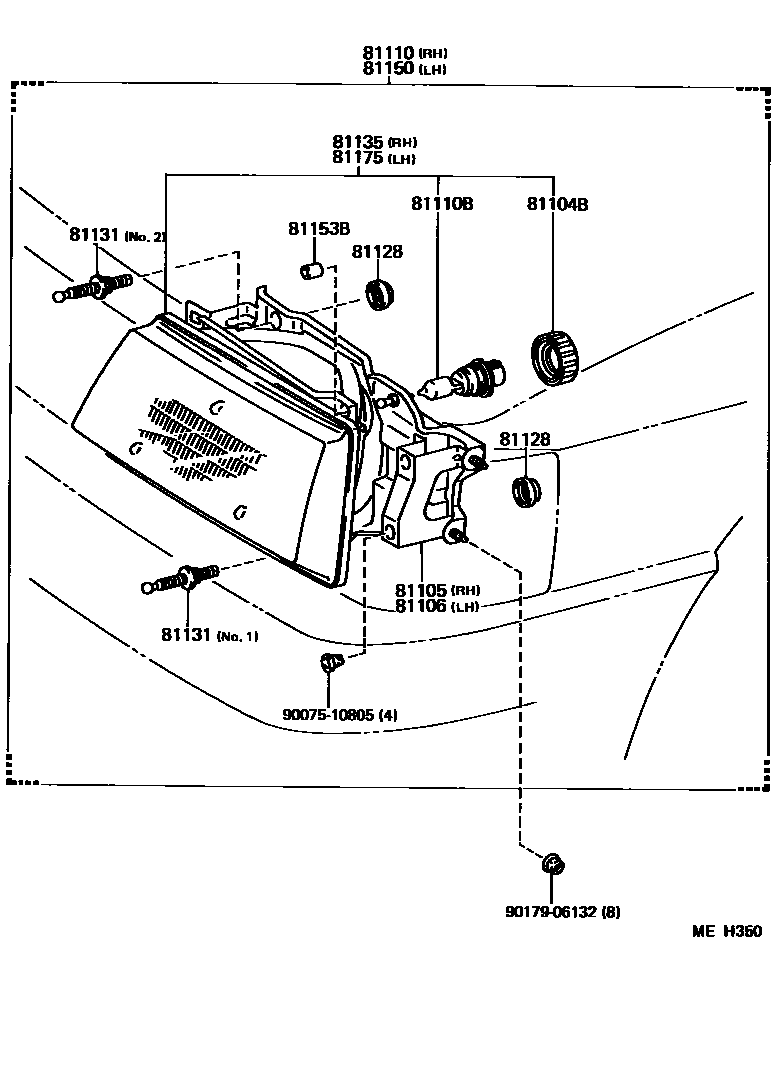

HEADLAMP

0001 1 0002 1

81104BLOCKING CAP, HEADLAMP

main81104-22520iEL31..DX,STD198608-198808

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-16370iEL31198608-198808

main81105-16410iEL31..B198708-198808

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-16370iEL31198608-198808

main81106-16410iEL31..B198708-198808

81110HEADLAMP ASSY, RH

main81110-16370iEL31198608-198808

main81110-16410iEL31..B198708-198808

sub81130-16410

sub90981-04039

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13032iEL31198608-198808

12V 65/45W,*HAL,*WH,12V 65/45W

81128NUT, HEADLAMP

main81128-22520iEL31..DX,STD198608-198808

81131SCREW, HEADLAMP ADJUSTING

main81131-16370iEL31198608-198808

NO.1

main81131-28050iEL31..B198708-198808

main81132-16370iEL31198608-198808

NO.2

81135UNIT ASSY, HEADLAMP, RH

main81130-16370iEL31..DX,STD;EL31..B..CND198608-198808

81150HEADLAMP ASSY, LH

main81150-16370iEL31198608-198808

main81150-16410iEL31..B198708-198808

sub81160-16410

sub90981-04039

81153BBEARING, HEADLAMP

main90075-10804iEL31..DX,STD;EL31..B..CND198608-198808

81175UNIT ASSY, HEADLAMP, LH

main81170-16370iEL31..DX,STD;EL31..B..CND198608-198808

9007510805

main90075-10805

9017906132

main90179-06132

13 parts on this diagram · 2 diagrams in section
