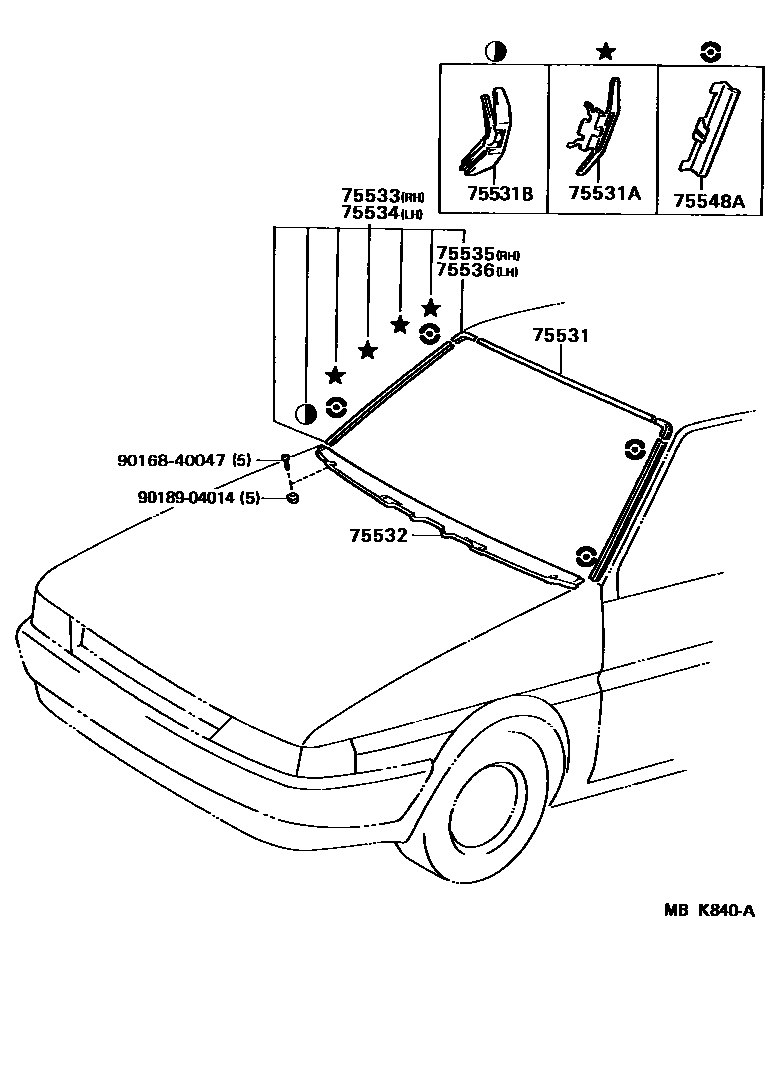

FRONT MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-16060iEL31¥3,920198608-198808

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-16030iEL31¥260198608-198808

75531BCLIP, WINDSHIELD MOULDING SET, NO.2

main75546-16030iEL31..3DS,5DS¥240198608-198808

RH

main75546-16040iEL31..2DS¥340198701-198808

RH

main75547-16030iEL31..3DS,5DS¥240198608-198808

LH

main75547-16040iEL31..2DS¥340198701-198808

LH

75532MOULDING, WINDSHIELD, LOWER

main75535-16040iEL31¥13,800198608-198808

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-16040iEL31..3DS,5DS¥2,990198608-198808

main76503-16010iEL31..2DS¥4,110198701-198808

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-16040iEL31..3DS,5DS¥2,990198608-198808

main76504-16010iEL31..2DS¥4,110198701-198808

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-16040iEL31..3DS,5DS¥1,200198608-198808

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-16040iEL31..3DS,5DS¥1,200198608-198808

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-16030iEL31¥230198608-198808

9016840047

main90168-40047¥110

9018904014

main90189-04014¥120

11 parts on this diagram · 2 diagrams in section
