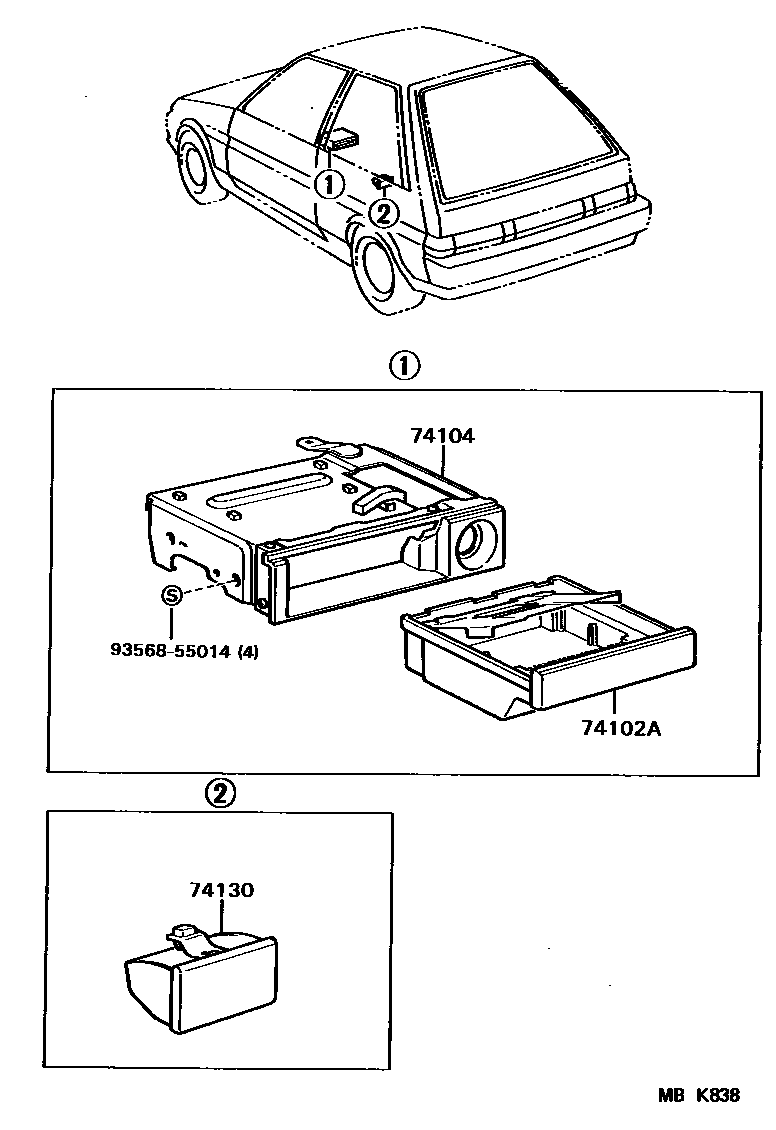

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-16030iEL31198608-198808

sub74102-16040

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-16040iEL31198608-198808

sub74104-16070

main74104-16050iEL31..DX198608-198808

W/LIGHTING

sub74104-16060

74130RECEPTACLE ASSY, REAR ASH

main74109-20040-01iEL31..DX198608-198610

W/LARGE TYPE RR CONSOLE,BLACK,BLACK,TRIM2#

sub74109-32010

main74109-20040-04iEL31..DX198608-198610

W/LARGE TYPE RR CONSOLE,BLUE,DEEP BLUE,TRIM8#

sub74109-32010

main74109-20040-05iEL31..DX198608-198610

W/LARGE TYPE RR CONSOLE,BEIGE,DARK BEIGE,TRIM4#

sub74109-32010

main74109-32010-01iEL31..DX198610-198808

W/LARGE TYPE RR CONSOLE,BLACK,BLACK,TRIM2#

sub74109-20080

sub74109-32010

main74109-32010-05iEL31..DX198610-198808

W/LARGE TYPE RR CONSOLE,BEIGE,DARK BEIGE,TRIM4#

sub74109-20080

sub74109-32010

main74109-32010-14iEL31..DX198610-198808

W/LARGE TYPE RR CONSOLE,BLUE,BLUE,TRIM8#

sub74109-20080

sub74109-32010

main74130-12040-11iEL31198608-198808

BLACK,BLACK,TRIM2#

sub74109-20080

sub74130-12040

main74130-12040-34iEL31198608-198808

BLUE,BLUE,TRIM8#

sub74109-20080

sub74130-12040

main74130-12040-35iEL31198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub74109-20080

sub74130-12040

9356855014

main93568-55014

4 parts on this diagram · 1 diagram in section
