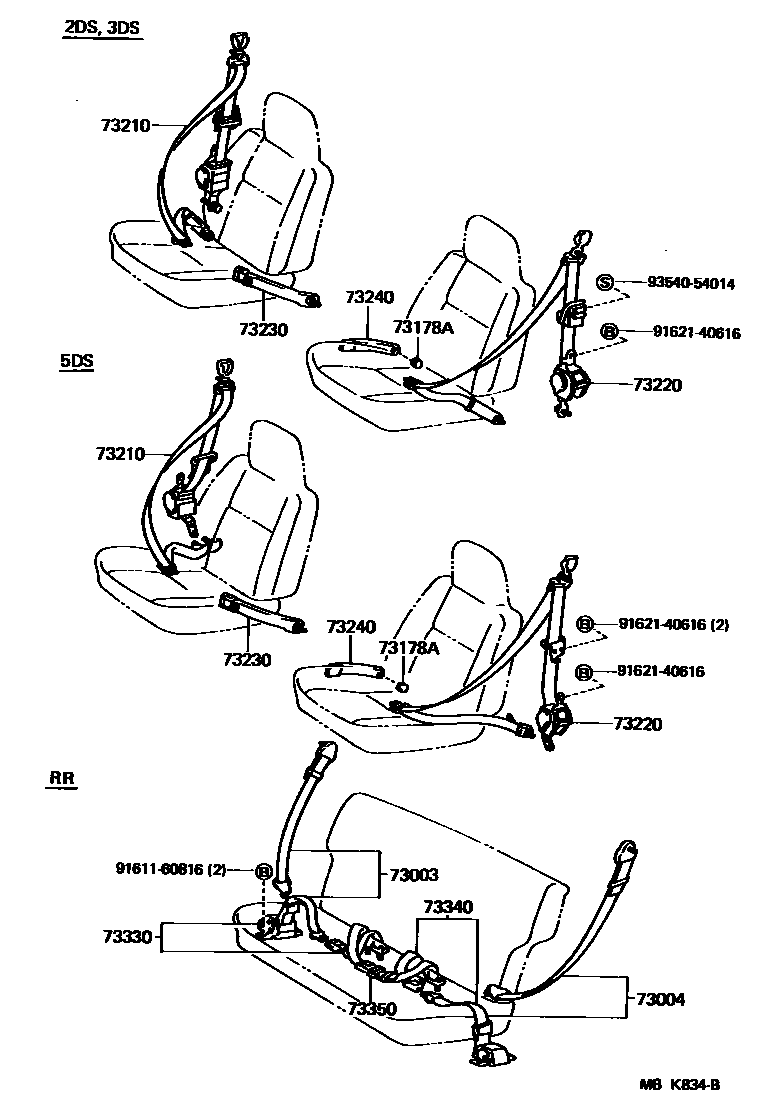

SEAT BELT & CHILD RESTRAINT SEAT
73003BELT SET, REAR SEAT 3 POINT TYPE, RH
3PALR,BLACK,BLACK,TRIM2#
3PALR,BLUE,BLUE,TRIM8#
3PALR,BEIGE,DARK BEIGE,TRIM4#
3PALR,BLACK,BLACK,TRIM2#
3PALR,BLUE,BLUE,TRIM8#
3PALR,BEIGE,DARK BEIGE,TRIM4#
3PALR,BLACK,BLACK,TRIM2#
3PALR,BLUE,BLUE,TRIM8#
3PALR,BEIGE,DARK BEIGE,TRIM4#
73004BELT SET, REAR SEAT 3 POINT TYPE, LH
3PALR,BLACK,BLACK,TRIM2#
3PALR,BLUE,BLUE,TRIM8#
3PALR,BEIGE,DARK BEIGE,TRIM4#
3PALR,BLACK,BLACK,TRIM2#
3PALR,BLUE,BLUE,TRIM8#
3PALR,BEIGE,DARK BEIGE,TRIM4#
3PALR,BLACK,BLACK,TRIM2#
3PALR,BLUE,BLUE,TRIM8#
3PALR,BEIGE,DARK BEIGE,TRIM4#
73178ACAP, SEAT BELT ANCHOR COVER
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,BLACK,TRIM2#
DECONTENT PACKAGE,BLACK
73220BELT ASSY, FRONT SEAT OUTER, LH
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
73330BELT ASSY, REAR SEAT LAP TYPE, RH
73340BELT ASSY, REAR SEAT LAP TYPE, LH
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
9161160816
main91611-60816
9162140616
main91621-40616
9354054014
main93540-54014
13 parts on this diagram · 1 diagram in section
