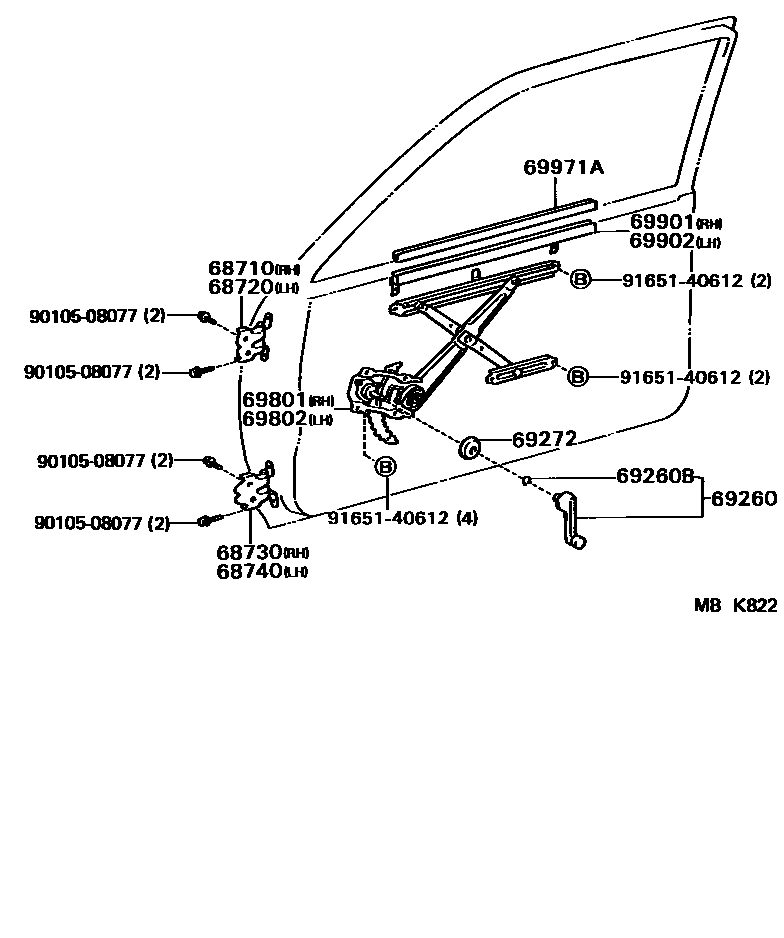

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-16020iEL31198608-198808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-16020iEL31198608-198808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-16020iEL31198608-198808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-16020iEL31198608-198808

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-11iEL31198608-198808

BLACK,NEW BLACK,TRIM2#

sub69260-10040

sub69260-16010

main69260-10040-50iEL31198608-198808

BLUE,BLUE,TRIM8#

sub69260-10040

sub69260-16010

main69260-10040-55iEL31198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iEL31198608-198808

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iEL31198608-198808

sub69268-20020

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-16030iEL31..3DS198608-198808

main69810-16050iEL31..5DS198608-198808

main69810-16070iEL31..2DS198701-198808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-16030iEL31..3DS198608-198808

main69820-16050iEL31..5DS198608-198808

main69820-16070iEL31..2DS198701-198808

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-16020iEL31..3DS198608-198808

main69901-16030iEL31..5DS198608-198808

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-16030iEL31..5DS198608-198808

main69902-16010iEL31..2DS,3DS198608-198808

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-16020iEL31..2DS,3DS198608-198808

sub69971-95110

main69971-22010iEL31..5DS198608-198808

sub69971-95110

9010508077

main90105-08077

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
