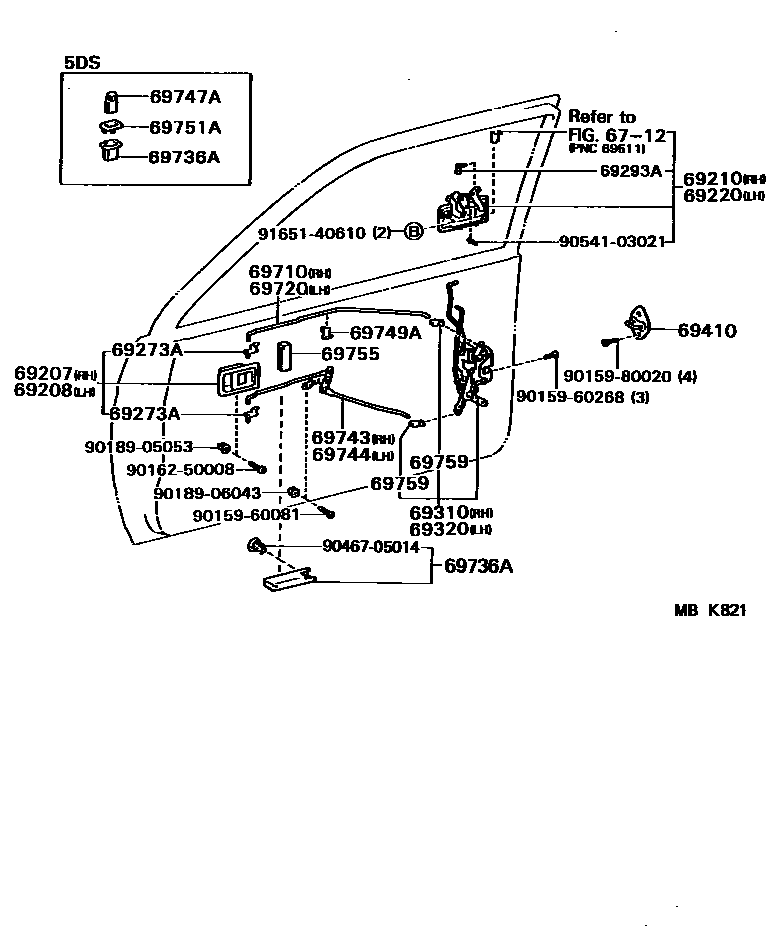

FRONT DOOR LOCK & HANDLE
6712
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
RH
LH
RH
LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W/*TDS
69320LOCK ASSY, FRONT DOOR, LH
W/*TDS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69736AGUIDE, FRONT DOOR LOCK LINK
RH
LH
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
69755SILENCER, FRONT DOOR LOCK LINK
sub69759-14010
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
LH
RH
ORANGE
PINK
9015960081
main90159-60081
9015960268
main90159-60268
9015980020
main90159-80020
9016250008
main90162-50008
9018905053
main90189-05053
9018906043
main90189-06043
9046705014
main90467-05014
9054103021
main90541-03021
9165140610
main91651-40610
29 parts on this diagram · 1 diagram in section
