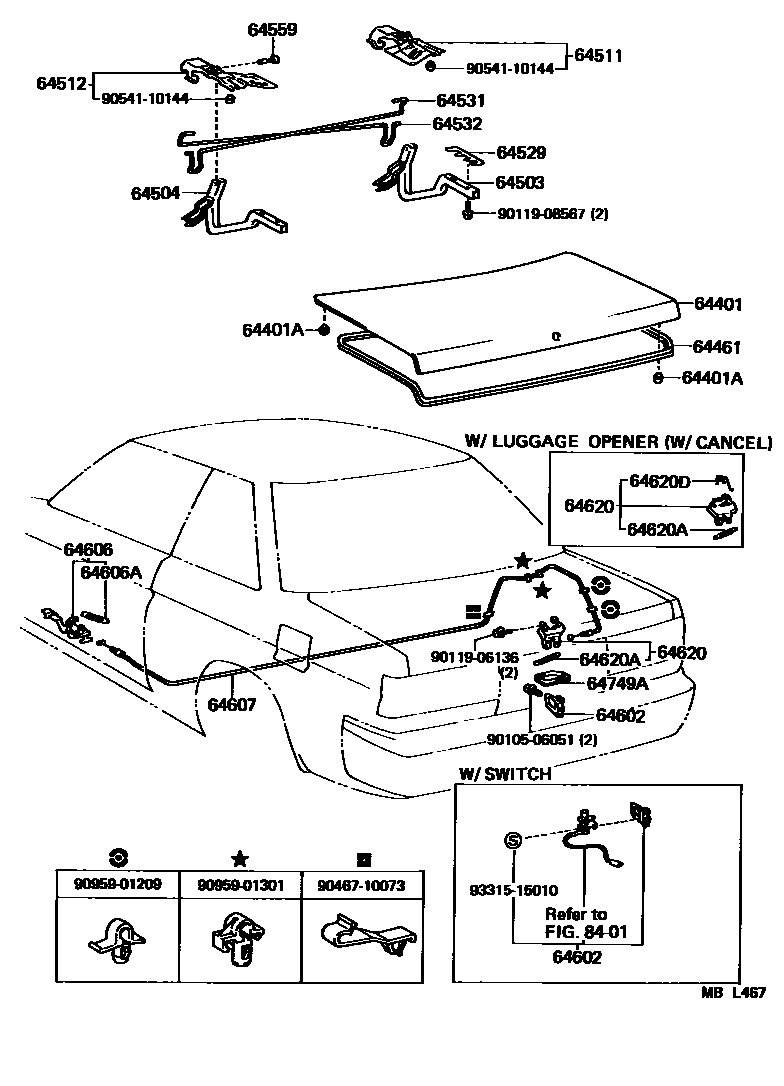

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
RR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64559PIN, LUGGAGE DOOR HINGE
64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
sub64621-12070
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR
W/LUGGAGE OPENER(W/CANCEL)
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64620DSPRING, TORSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
W/LUGGAGE OPENER(W/CANCEL)
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
8401
9010506051
main90105-06051
9011906136
main90119-06136
9011908567
main90119-08567
9046710073
main90467-10073
9054110144
main90541-10144
9095901209
main90959-01209
9095901301
main90959-01301
9331515010
main93315-15010
28 parts on this diagram · 1 diagram in section
