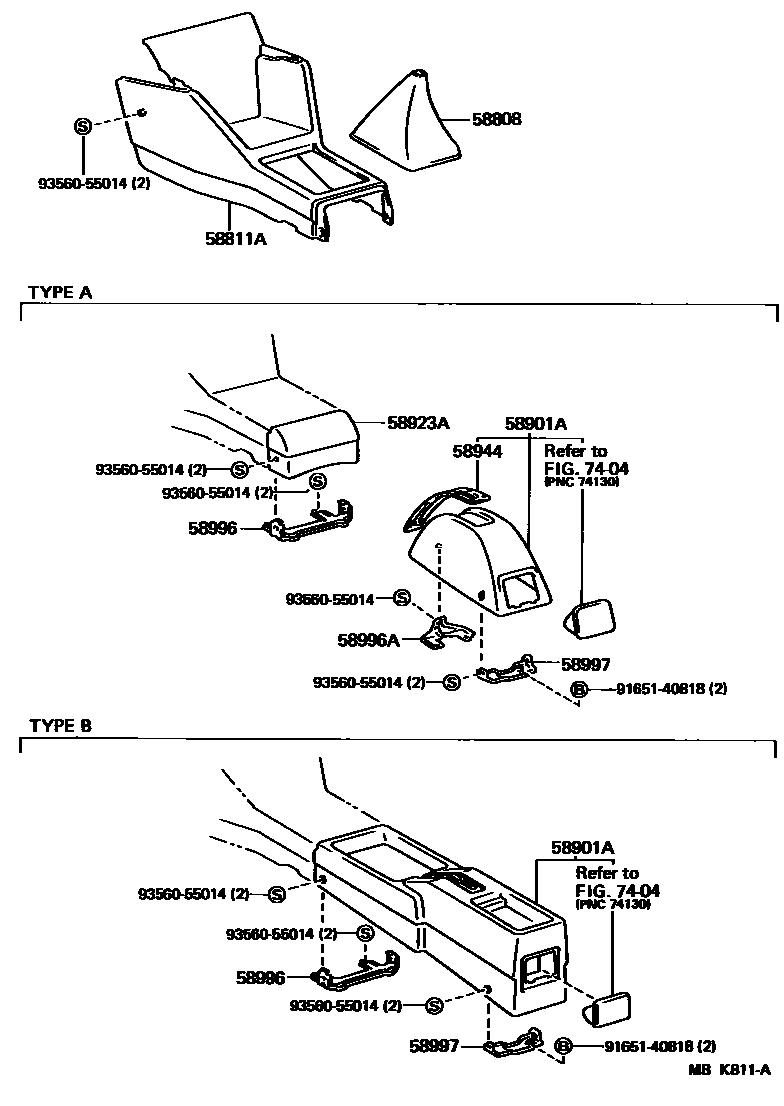

CONSOLE BOX & BRACKET
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
58811ABOX, CONSOLE, FRONT
BLACK,BRACK,TRIM2#
COLD SPEC,BLACK,BRACK,TRIM2#
COLD SPEC,BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
58901ABOX SUB-ASSY, CONSOLE, REAR
TYPE B,BLACK,BLACK,TRIM2#
TYPE B,BLUE,BLUE,TRIM8#
TYPE B,BEIGE,DARK BEIGE,TRIM4#
TYPE A,BLACK,BLACK,TRIM2#
TYPE A,BLUE,BLUE,TRIM8#
TYPE A,BEIGE,DARK BLUE,TRIM4#
58923APANEL, CONSOLE REAR END
58944COVER, PARKING BRAKE HOLE
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
TYPE A CONSOLE
TYPE B CONSOLE
7404
9165140818
main91651-40818
9356055014
main93560-55014
11 parts on this diagram · 1 diagram in section
