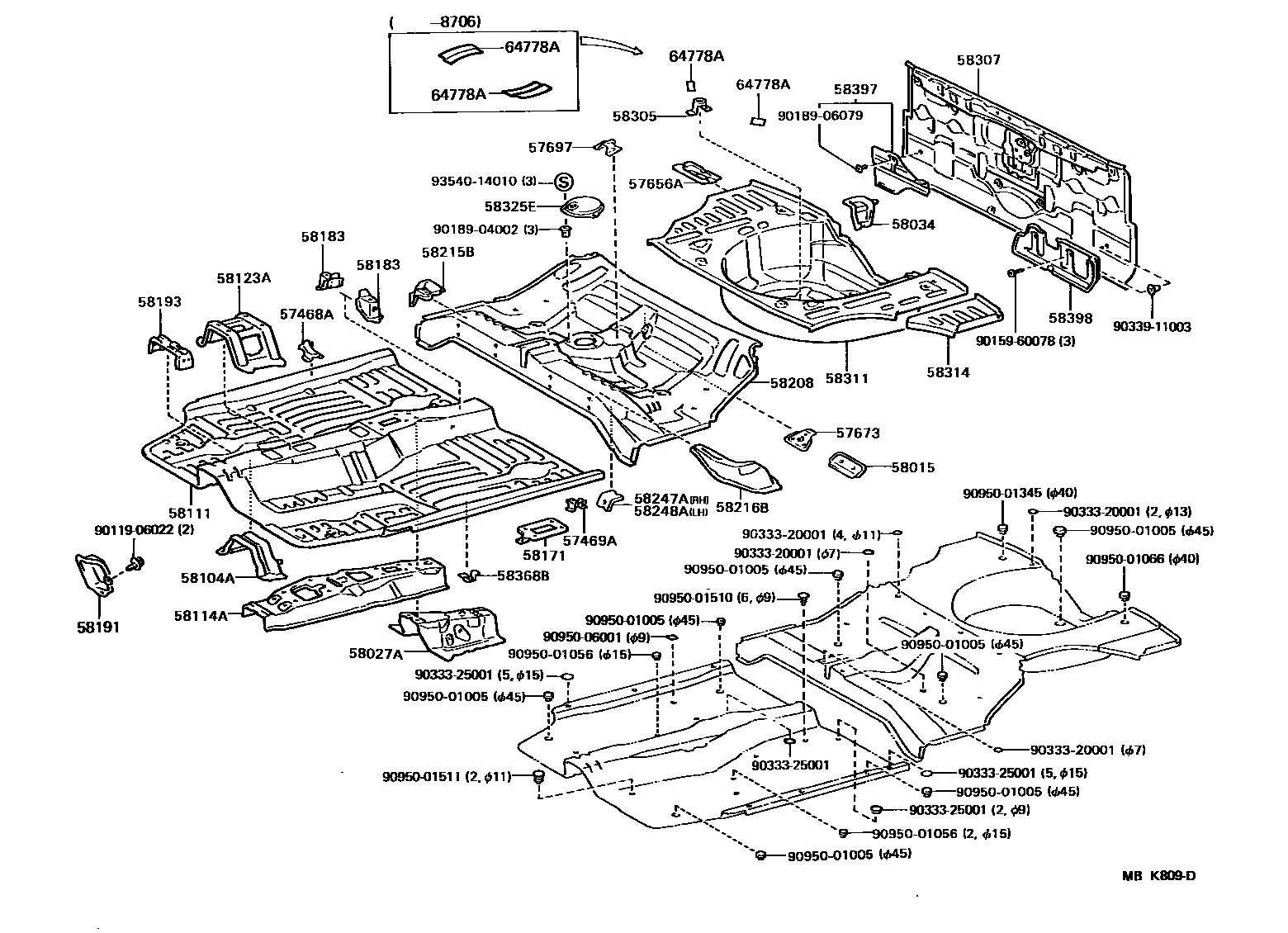

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-16030iEL31¥950198608-198808

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-16030iEL31¥950198608-198808

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-16010iEL31¥1,620198608-198808

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57607-16020iEL31..(3DS,5DS)..DX¥970198608-198708

sub57673-16030¥1,150

main57673-16030iEL31..(3DS,5DS)..DX¥1,150198708-198808

57697RETAINER, REAR SEAT CUSHION

main57697-16010iEL31..3DS,5DS¥460198608-198808

W/FIXED CUSHION REAR SEAT

main57697-16010iEL31..2DS¥460198701-198808

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58015-16040iEL31¥2,230198608-198808

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-16020iEL31¥3,920198608-198808

sub58027-16021¥3,920

sub90333-30004¥60

58034BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR

main58034-16010iEL31¥2,420198608-198808

58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT

main58104-10030iEL31¥2,700198608-198808

58111PAN, FRONT FLOOR

main58111-16060iEL31¥36,000198608-198808

sub58111-16061¥36,200

sub90333-30004¥60

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-10030iEL31¥4,710198608-198808

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-10030iEL31¥3,620198608-198808

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-16020iEL31¥1,300198608-198808

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-16010iEL31¥1,180198608-198808

RH

main58184-16020iEL31¥1,180198608-198808

LH

58191FOOTREST, FRONT FLOOR

main58191-16050iEL31¥1,440198608-198808

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-16010iEL31¥1,680198608-198808

58208PAN, CENTER FLOOR

main58211-16060iEL31..2DS198701-198808

main58211-16900iEL31..3DS,5DS¥21,200198608-198808

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-16020iEL31¥1,000198608-198808

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-16020iEL31¥1,000198608-198808

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-10010iEL31..3DS,5DS¥640198608-198808

W/FIXED CUSHION REAR SEAT

main58247-10010iEL31..2DS¥640198701-198808

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-10010iEL31..3DS,5DS¥640198608-198808

W/FIXED CUSHION REAR SEAT

main58247-10010iEL31..2DS¥640198701-198808

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iEL31¥350198608-198808

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-16280iEL31..3DS,5DS¥21,000198608-198808

main58307-16310iEL31..2DS¥19,900198701-198808

58311PAN, REAR FLOOR

main58311-16110iEL31..3DS,5DS¥25,700198608-198808

main58311-16120iEL31..2DS¥37,500198701-198808

58314PANEL, REAR FLOOR SIDE, LH

main58314-16030iEL31..3DS,5DS¥1,320198608-198808

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-16020iEL31¥680198608-198808

58368BBRACKET, FUEL TUBE, NO.2

main58368-10010iEL31¥260198608-198808

58397COVER, LOWER BACK, OUTER RH

main58397-16010iEL31..3DS,5DS¥1,570198608-198808

main58397-16020iEL31..2DS¥3,720198701-198808

58398COVER, LOWER BACK, OUTER LH

main58398-16010iEL31..3DS,5DS¥2,170198608-198808

main58398-16020iEL31..2DS¥4,350198701-198808

64778APROTECTOR, SPARE WHEEL

main64778-12020iEL31¥1,540198608-198706

main64778-16020iEL31¥1,180198706-198808

9011906022

main90119-06022¥130

9015960078

main90159-60078¥120

9018904002

main90189-04002¥100

9018906079

main90189-06079¥140

9033320001

main90333-20001¥70

9033325001

main90333-25001¥140

9033911003

main90339-11003¥180

9095001005

main90950-01005¥400

9095001056

main90950-01056¥230

9095001066

main90950-01066¥210

9095001345

main90950-01345¥400

9095001510

main90950-01510¥110

9095001511

main90950-01511¥190

9095006001

main90950-06001¥170

9354014010

main93540-14010¥100

45 parts on this diagram · 2 diagrams in section
