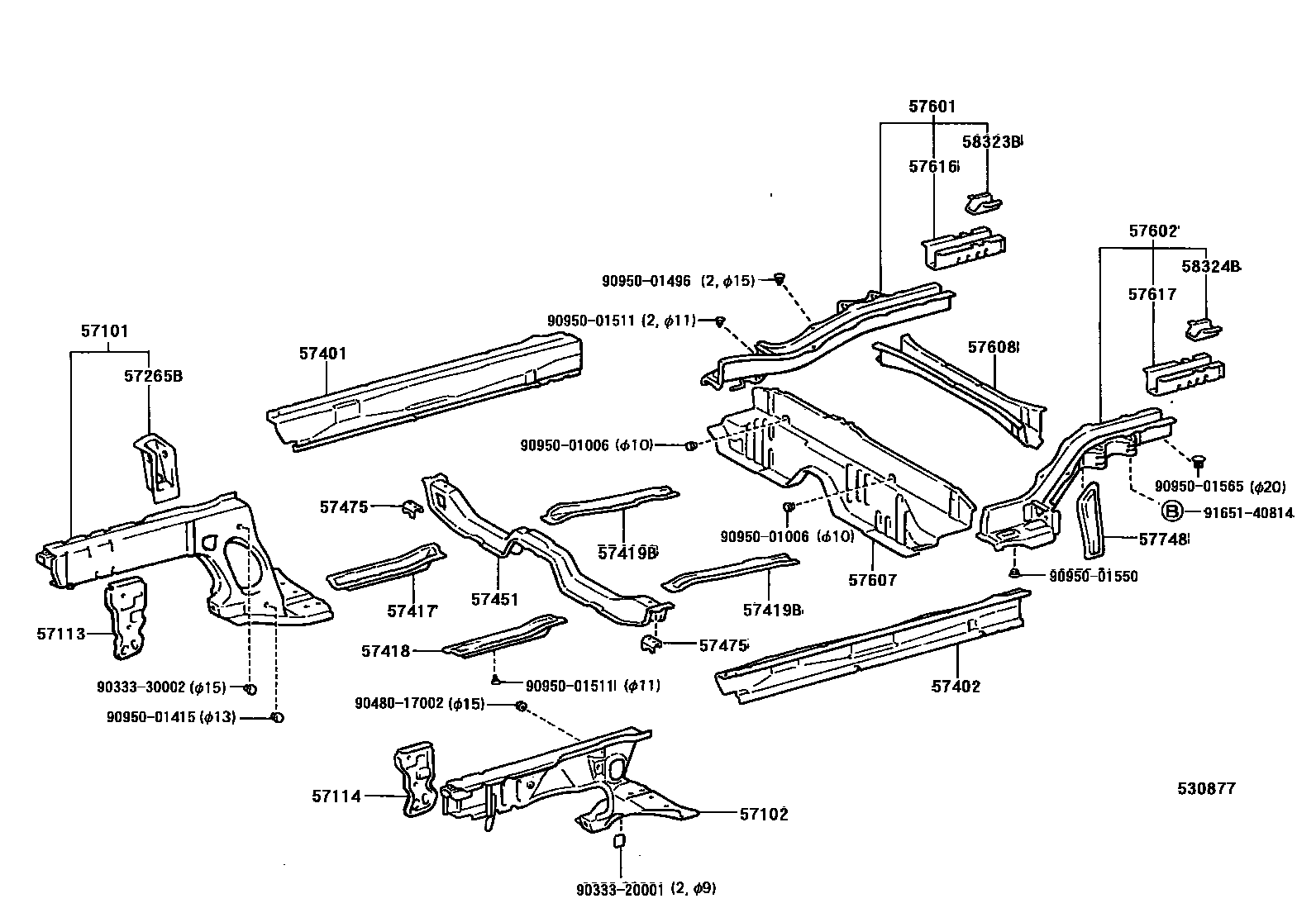

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-16160iEL31198608-198808

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-16110iEL31..MTM198608-198808

sub57102-16111

sub90333-20001

main57102-16120iEL31..3FC198608-198808

sub57102-16160

sub90333-20001

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-16050iEL31198608-198808

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-16050iEL31198608-198808

57265BBRACKET, ENGINE MOUNTING, RH

main57265-16020iEL31198707-198808

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-16140iEL31198608-198808

sub57401-16141

sub90333-25001

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-16140iEL31198608-198808

sub57402-16141

sub90333-25001

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-10060iEL31198608-198808

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-10050iEL31198608-198808

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-10020iEL31198608-198808

57451MEMBER, FRONT FLOOR CROSS

main57451-10050iEL31198608-198808

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-10030iEL31198608-198808

RH

main57476-10020iEL31198608-198808

LH

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-16070iEL31..3DS,5DS198608-198808

main57601-16150iEL31..2DS198701-198808

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-16070iEL31..3DS,5DS198608-198808

main57602-16150iEL31..2DS198701-198808

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-16040iEL31198608-198808

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-16060iEL31198608-198808

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-16906iEL31..3DS,5DS198608-198808

main57615-16907iEL31..2DS198701-198808

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-16040iEL31..2DS198701-198808

main57616-16905iEL31..3DS,5DS198608-198808

57748REINFORCEMENT, LATERAL ROD BRACKET

main57748-10010iEL31198608-198808

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main58323-16030iEL31198608-198808

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58324-16050iEL31198608-198808

9033320001

main90333-20001

9033330002

main90333-30002

9048017002

main90480-17002

9095001006

main90950-01006

9095001415

main90950-01415

9095001496

main90950-01496

9095001511

main90950-01511

9095001550

main90950-01550

9095001565

main90950-01565

9165140814

main91651-40814

31 parts on this diagram · 1 diagram in section
