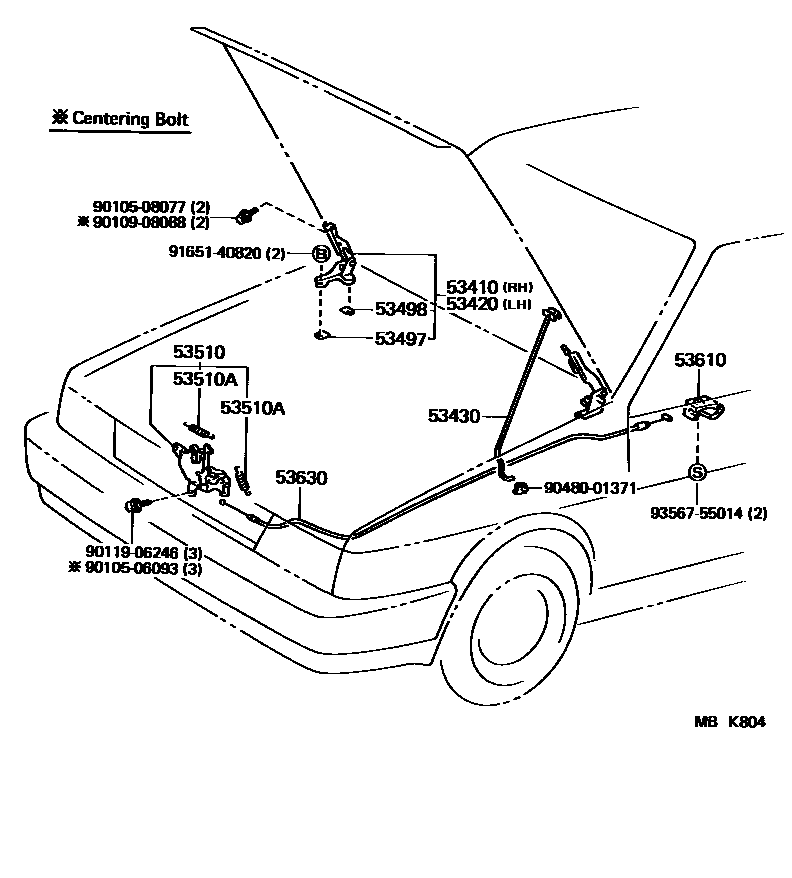

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-16040iEL31198608-198808

sub53410-16041

53420HINGE ASSY, HOOD, LH

main53420-16020iEL31198608-198808

sub53420-16021

53430SUPPORT ASSY, HOOD

main53440-16020iEL31198608-198808

53497PAD, HOOD HINGE, NO.1

main53497-14070iEL31198608-198808

sub53497-14071

53498PAD, HOOD HINGE, NO.2

main53498-14010iEL31198608-198808

sub53498-14011

53510LOCK ASSY, HOOD

main53510-16100iEL31..EZ198608-198808

main53510-16110iEL31..(2DS,3DS)..USA198708-198805

W/*TDS

main53510-16111iEL31..TER..(2DS,3DS)..USA198805-198808

W/*TDS

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iEL31198608-198808

WD=0.9,CW=26.5,WD=0.9

main90506-20008iEL31198608-198808

WD=2.0,CW=17,CW=17.0,WD=2.0

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-10020-01iEL31198608-198808

BLACK,NEW BLACK,TRIM2#

sub53601-10020

sub53601-20060

main53601-10020-05iEL31198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-14iEL31198608-198808

BLUE,BLUE,TRIM8#

sub53601-10020

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-16160iEL31198608-198808

9010506093

main90105-06093

9010508077

main90105-08077

9010908088

main90109-08088

9011906246

main90119-06246

9048001371

main90480-01371

9165140820

main91651-40820

9356755014

main93567-55014

16 parts on this diagram · 1 diagram in section
