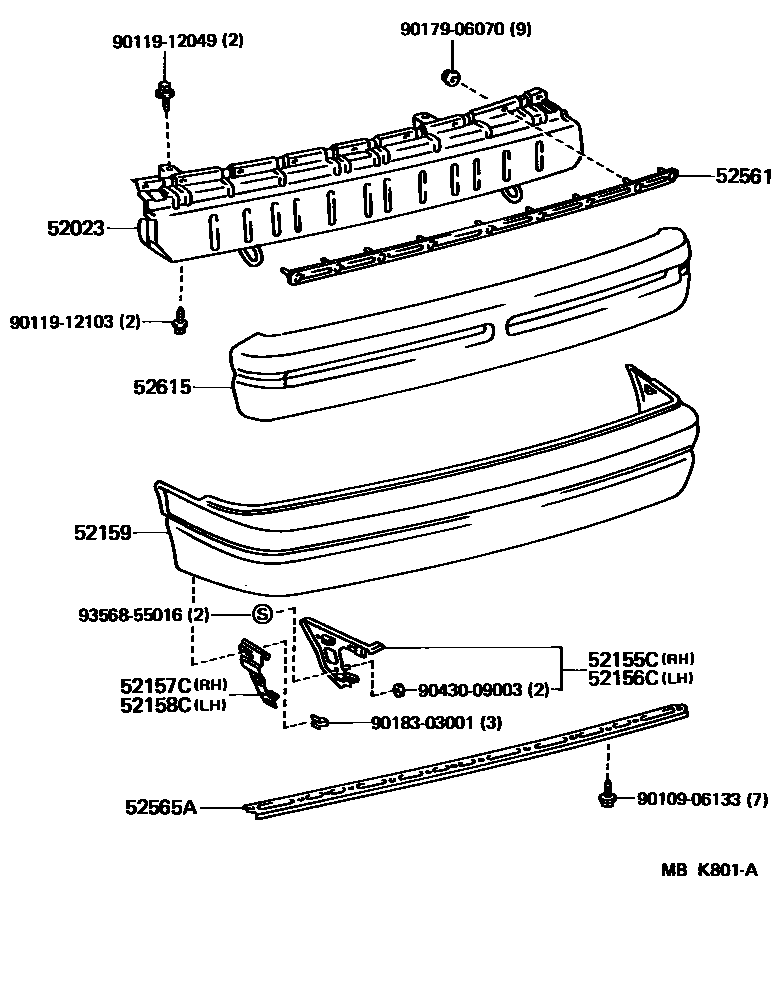

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-16040iEL31..3DS,5DS198608-198808

main52023-16080iEL31..2DS198701-198808

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-16091iEL31..3DS,5DS198608-198808

main52155-16100iEL31..2DS198701-198808

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52155-16100iEL31..2DS198701-198808

main52156-16091iEL31..3DS,5DS198608-198808

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-16071iEL31..3DS,5DS198608-198808

main52157-16080iEL31..2DS198701-198808

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52157-16080iEL31..2DS198701-198808

main52158-16071iEL31..3DS,5DS198608-198808

52159COVER, REAR BUMPER

main52159-16220iEL31..3DS,5DS198608-198808

main52159-16250iEL31..2DS198701-198808

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-12050iEL31198608-198808

52565ARETAINER, REAR BUMPER, LOWER

main52565-12030iEL31198608-198808

52615ABSORBER, REAR BUMPER ENERGY

main52615-16050iEL31..3DS,5DS198608-198808

main52615-16060iEL31..2DS198701-198808

9010906133

main90109-06133

9011912049

main90119-12049

9011912103

main90119-12103

9017906070

main90179-06070

9018303001

main90183-03001

9043009003

main90430-09003

9356855016

main93568-55016

16 parts on this diagram · 2 diagrams in section
