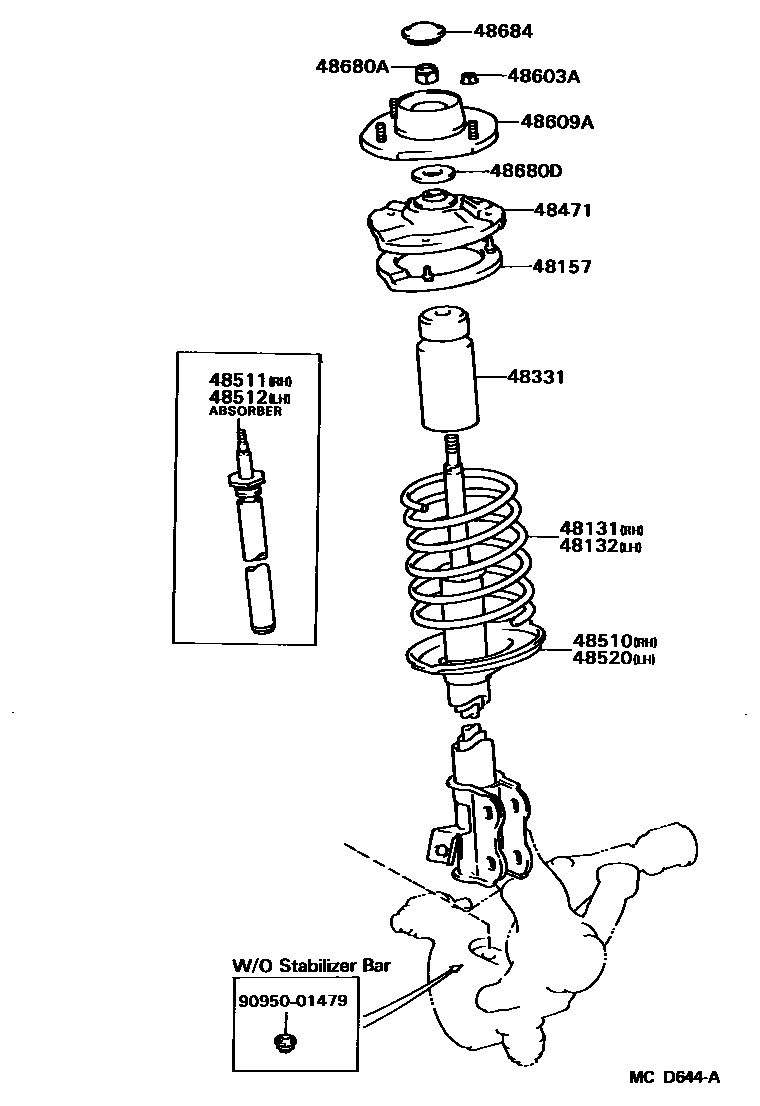

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157INSULATOR, FRONT COIL SPRING, UPPER
48331BUMPER, FRONT SPRING, NO.1
48471SEAT, FRONT SPRING, UPPER
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48510-16281
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
sub48511-16020
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
sub48511-16020
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48520-16061
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
9095001479
main90950-01479
15 parts on this diagram · 1 diagram in section
