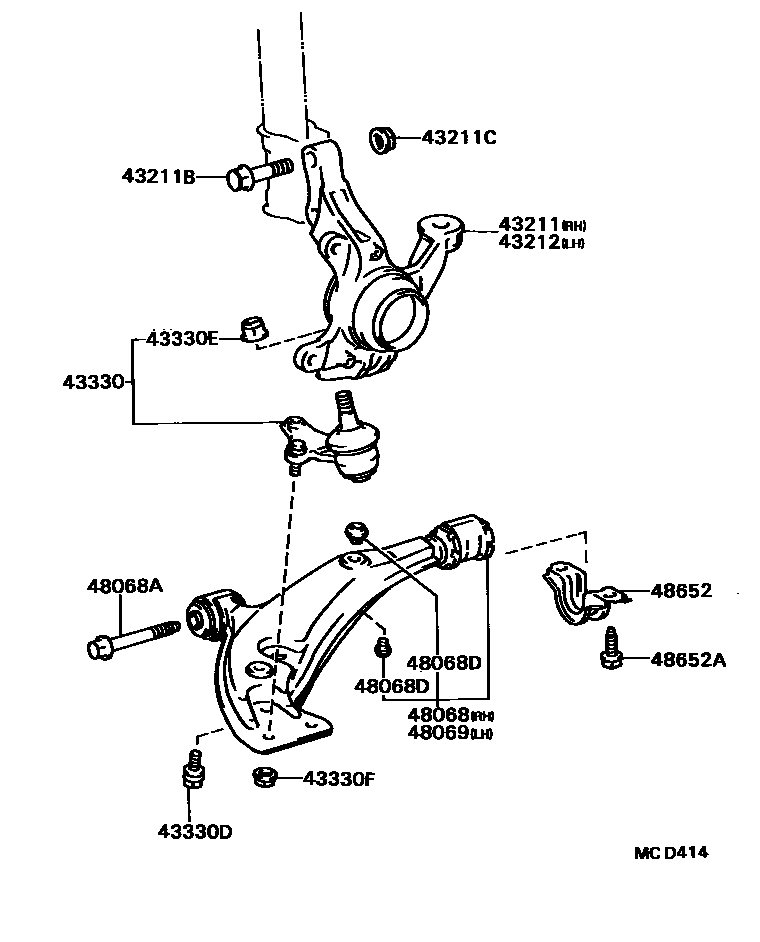

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-16030iEL31198608-198808

43211BBOLT (FOR ABSORBER SETTING)

main90105-15001iEL31198608-198609

main90105-15002iEL31198609-198808

43211CNUT (FOR ABSORBER SETTING)

main90179-15001iEL31198608-198609

main90179-15003iEL31198609-198808

43212KNUCKLE, STEERING, LH

main43212-16030iEL31198608-198808

43330JOINT ASSY, LOWER BALL, FRONT

main43330-19045iEL31198608-198808

sub43330-19075

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90119-10407iEL31198608-198808

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90179-12027iEL31198608-198808

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10087iEL31198608-198808

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-16040iEL31198608-198808

sub48068-16060

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90119-12099iEL31198608-198808

48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)

main90950-01414iEL31198608-198808

OD=16

main90950-01478iEL31198608-198808

OD=21

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-16040iEL31198608-198808

sub48069-16060

48652BRACKET, FRONT LOWER ARM

main48652-10010iEL31198608-198808

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90105-12061iEL31198608-198808

14 parts on this diagram · 1 diagram in section
