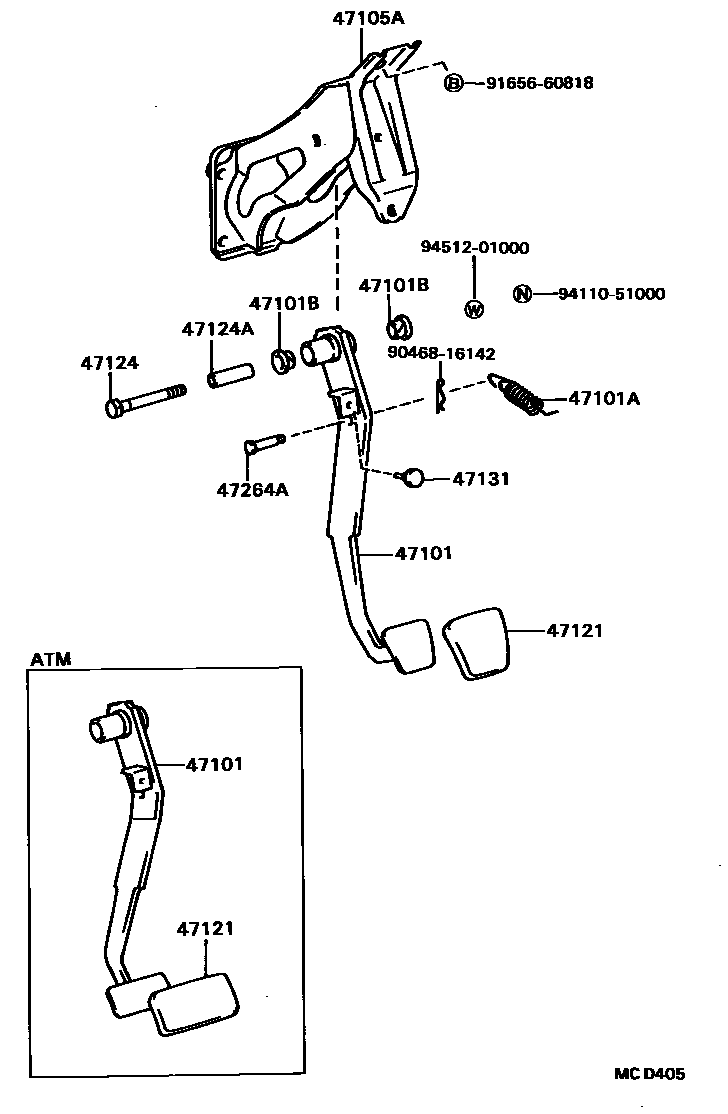

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-16090iEL31..MTM198608-198808

main47101-16100iEL31..3FC198608-198808

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14023iEL31198608-198808

sub90507-14036

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iEL31198608-198808

47105ASUPPORT SUB-ASSY, BRAKE PEDAL

main55106-16120iEL31198608-198808

47121PAD, BRAKE PEDAL

main31321-14020iEL31..MTM198608-198808

main47121-12020iEL31..3FC198608-198808

47124SHAFT, BRAKE PEDAL

main90101-10015iEL31198608-198808

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iEL31198608-198808

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iEL31198608-198808

47264APIN(FOR PUSH ROD)

main90249-08051iEL31198608-198808

9046816142

main90468-16142

9165660818

main91656-60818

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
