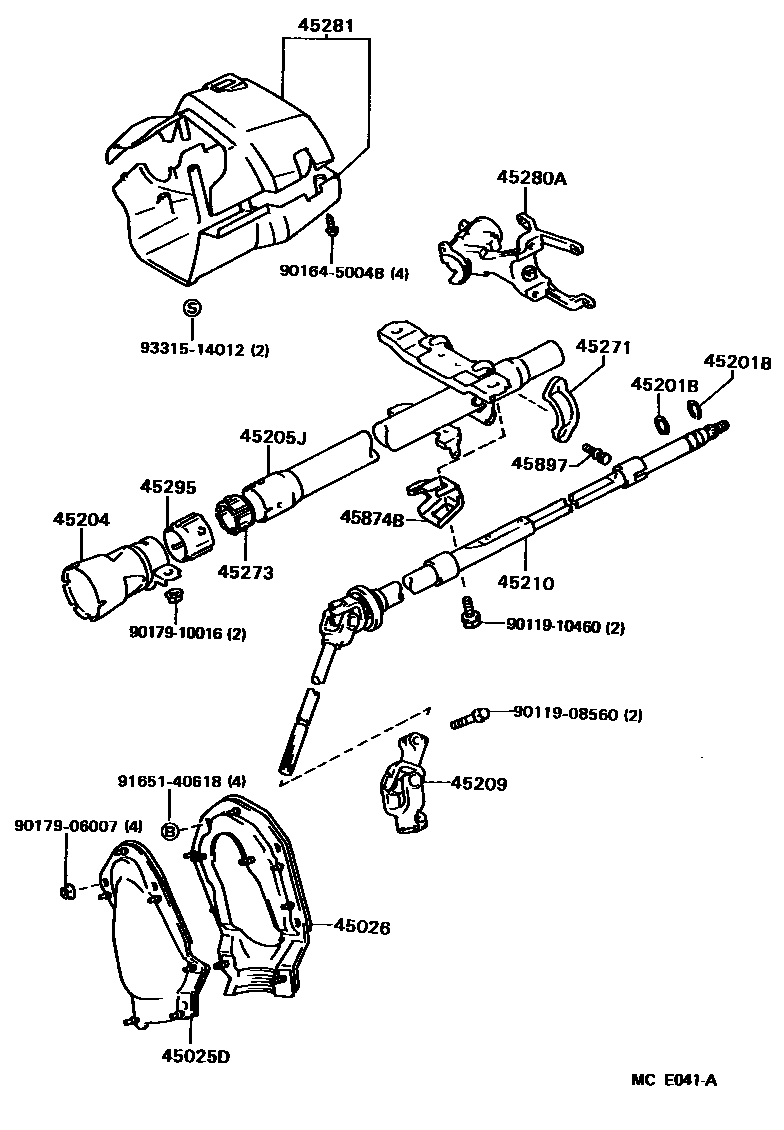

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-16080iEL31198608-198808

main45025-16100iEL31..3FC,5F;EL31..4F..STD..CND198608-198808

W/POWER STEERING

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-16020iEL31198608-198808

main45026-16040iEL31..3FC,5F;EL31..4F..STD..CND198608-198808

W/POWER STEERING

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iEL31198608-198808

T=1.20,T=1.2

main90520-17196iEL31198608-198808

T=1.35-1.45,T=1.4

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-16011iEL31198608-198808

main45204-16020iEL31198608-198808

W/*TIS

main45204-16030iEL31..3FC,5F;EL31..4F..STD..CND198608-198808

W/*TIS & POWER STEERING

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-16050iEL31198608-198808

sub45205-16051

main45205-16060iEL31198608-198808

W/*TIS

sub45205-16061

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-10020iEL31198608-198805

main45209-16020iEL31..3FC,5F;EL31..4F..STD..CND198608-198808

W/POWER STEERING

main45209-16030iEL31198805-198808

45210SHAFT ASSY, STEERING MAIN

main45210-16090iEL31198608-198805

sub45210-16091

sub45209-16030

main45210-16091iEL31198805-198808

main45210-16110iEL31..TER198608-198808

W/POWER STEERING

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iEL31198608-198808

45273BUSH, STEERING MAIN SHAFT

main45273-16010iEL31198608-198808

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-16050iEL31198608-198808

45281HOUSING, STEERING COLUMN

main45286-16906-01iEL31198608-198808

BLACK,NEW BLACK,TRIM2#

sub45286-16906

main45286-16906-04iEL31..TER198608-198808

BLUE,BLUE,TRIM8#

sub45286-16906

main45286-16906-05iEL31198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub45286-16906

main45286-16908-01iEL31198608-198808

BLACK,W/*TIS,NEW BLACK,TRIM2#

sub45286-16908

main45286-16908-04iEL31..TER198608-198808

BLUE,W/*TIS,BLUE,TRIM8#

sub45286-16908

main45286-16908-05iEL31198608-198808

BEIGE,W/*TIS,DARK BEIGE,TRIM4#

sub45286-16908

45295BUSH, STEERING COLUMN TUBE

main45295-16010iEL31198608-198808

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-16020iEL31198608-198808

45897BOLT, STEERING LOCK SET

main45897-12020iEL31198608-198808

9011908560

main90119-08560

9011910460

main90119-10460

9016450048

main90164-50048

9017906007

main90179-06007

9017910016

main90179-10016

9165140618

main91651-40618

9331514012

main93315-14012

21 parts on this diagram · 2 diagrams in section
