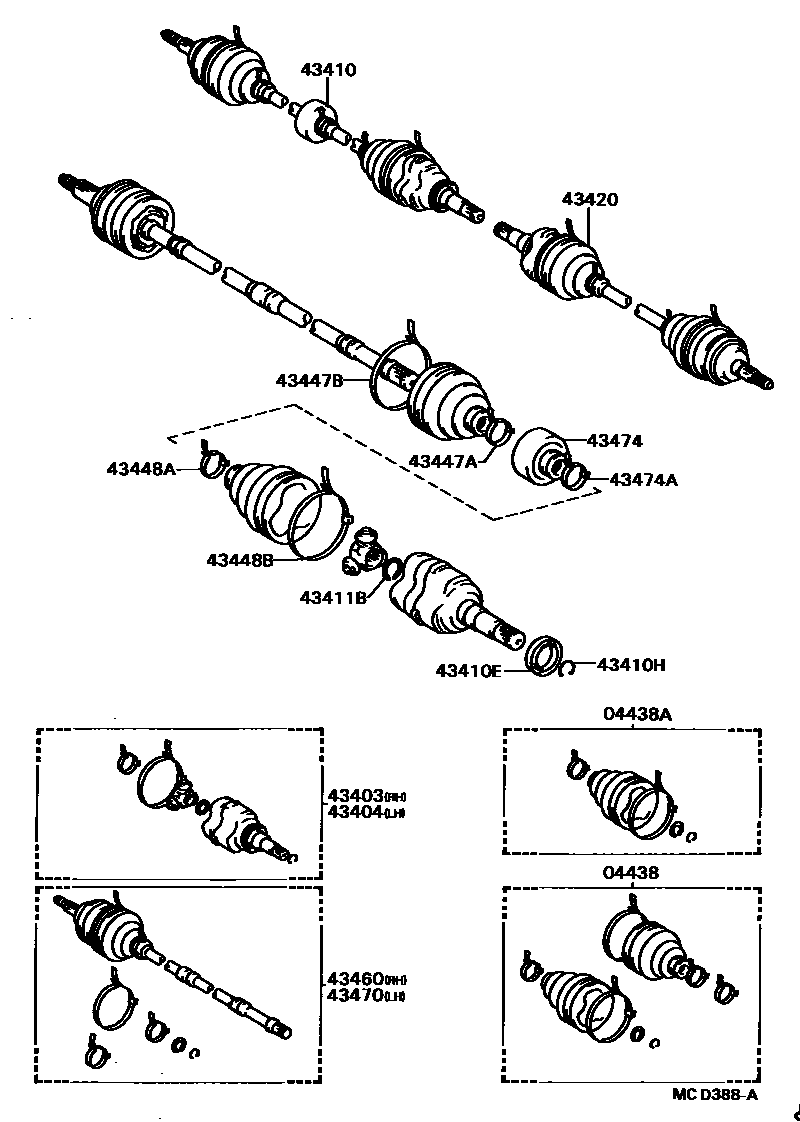

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-10021iEL31¥10,800198608-198609

sub04438-10110¥10,700

main04438-10022iEL31¥10,800198609-198808

sub04438-16040¥10,800

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-10011iEL31¥6,700198608-198808

sub04438-16030¥6,700

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19046iEL31¥26,200198608-198808

sub43403-10010¥23,500

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-19046iEL31¥26,200198608-198808

sub43403-10010¥23,500

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16060iEL31¥79,900198608-198808

sub43410-16061¥80,500

sub43525-20030¥300

sub90179-22020¥310

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main41336-12010iEL31¥130198608-198808

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90521-26004iEL31¥100198608-198808

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22001iEL31¥110198608-198808

sub90520-22029¥90

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-16060iEL31¥71,500198608-198808

sub43420-16061¥72,000

sub43525-20030¥300

sub90179-22020¥310

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01078iEL31¥80198608-198808

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01080iEL31¥300198608-198808

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01078iEL31¥80198608-198808

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01146iEL31¥350198608-198808

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19155iEL31¥47,700198608-198808

sub43460-19156¥47,700

sub43525-20030¥300

sub90179-22020¥310

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-19125iEL31¥38,800198608-198808

sub43470-19126¥38,500

sub43525-20030¥300

sub90179-22020¥310

43474DAMPER, DRIVE SHAFT

main43474-10010iEL31¥4,460198608-198808

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main90949-01078iEL31¥80198608-198808

17 parts on this diagram · 1 diagram in section
