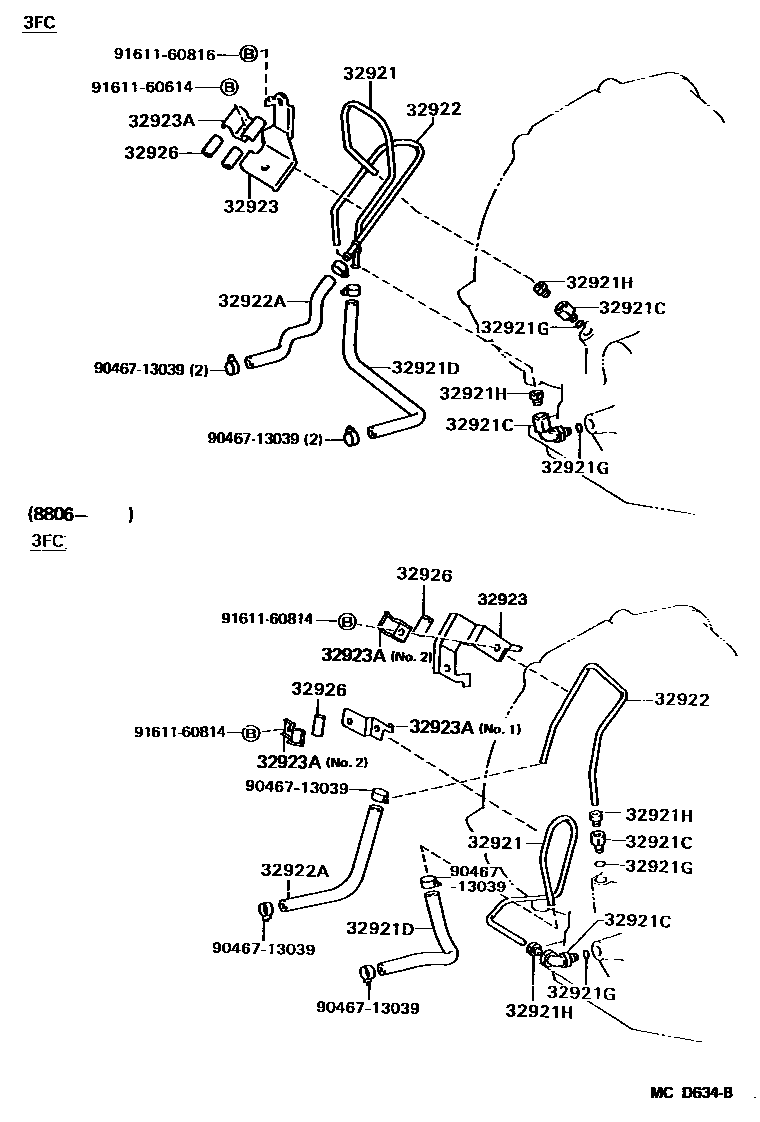

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-10040iEL31..3FC198610-198806

main32921-10041iEL31..3FC198608-198610

sub32921-10040

main32921-16061iEL31..3FC198806-198808

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iEL31..3FC198608-198808

INLET

main90407-14003iEL31..3FC198608-198808

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-16030iEL31..3FC198806-198808

sub32941-16060

main90445-15014iEL31..3FC198608-198806

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iEL31..3FC198608-198808

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iEL31..3FC198608-198808

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-16030iEL31..3FC198608-198806

main32922-16070iEL31..3FC198806-198808

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15015iEL31..3FC198806-198808

sub90445-15046

main90445-15032iEL31..3FC198608-198806

sub90445-15047

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-10040iEL31..3FC198608-198806

main32923-16031iEL31..3FC198806-198808

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-16040iEL31..3FC198806-198808

NO.1

main90462-10082iEL31..3FC198806-198808

NO.2

main90462-12085iEL31..3FC198608-198806

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iEL31..3FC198608-198808

L=25,ID=8

9046713039

main90467-13039

9161160614

main91611-60614

9161160814

main91611-60814

9161160816

main91611-60816

14 parts on this diagram · 1 diagram in section
