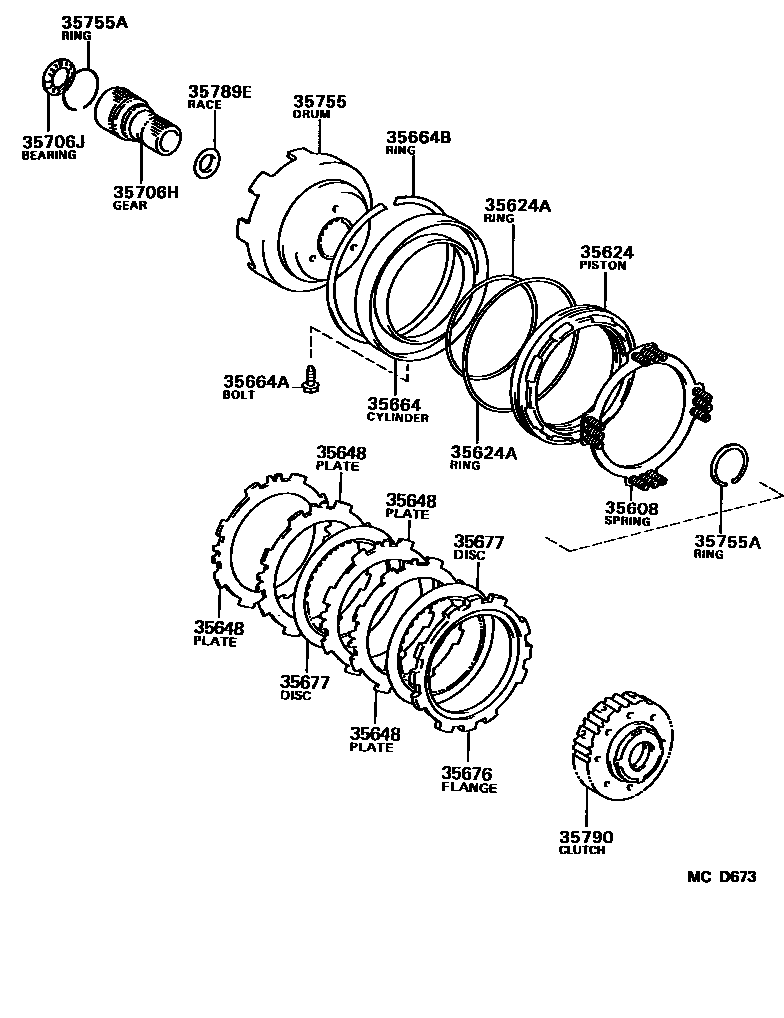

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iEL31..3FC¥1,480198608-198808

35624PISTON, 2ND BRAKE

main35624-32010iEL31..3FC¥3,680198608-198808

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iEL31..3FC¥640198608-198808

INNER

main90301-99023iEL31..3FC¥1,090198608-198808

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010iEL31..3FC¥2,000198608-198808

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iEL31..3FC¥5,400198608-198808

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iEL31..3FC¥160198608-198808

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iEL31..3FC¥550198608-198808

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iEL31..3FC¥4,590198608-198808

T=3.5

sub35676-12030¥4,810

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-30040iEL31..3FC¥2,600198608-198808

sub35677-43010¥2,070

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-32012iEL31..3FC¥10,100198608-198808

sub35706-32030¥10,000

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iEL31..3FC¥770198608-198808

35755DRUM, SUN GEAR INPUT

main35755-32020iEL31..3FC¥4,760198608-198808

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iEL31..3FC¥170198608-198808

T=1.2,ID=44.0,T=1.2,ID=44.0

main90520-47003iEL31..3FC¥160198608-198808

T=2.3,ID=47.1,WD=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iEL31..3FC¥530198608-198808

35790CLUTCH ASSY, 1 WAY

main35790-32020iEL31..3FC¥10,800198608-198808

sub35790-32050¥10,800

15 parts on this diagram · 1 diagram in section
