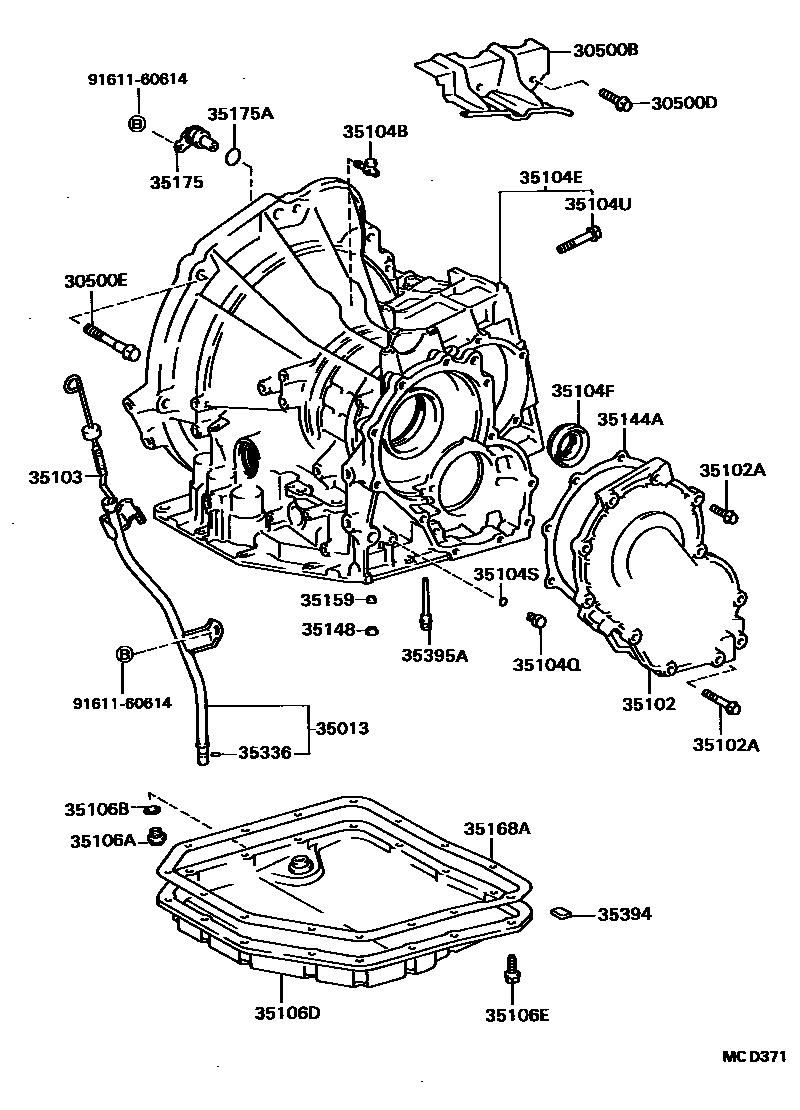

TRANSMISSION CASE & OIL PAN (ATM)
30500BPROTECTOR, TRANSAXLE CASE
30500DBOLT(FOR TRANSAXLE CASE PROTECTOR)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX60-22,*10-1.25PX60-22
*12-1.25PX55-30,*12-1.25PX55-30
*12-1.25PX45-30,*12-1.25PX45-30
*6-1.00PX14-14,*6-1.00PX14-14
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35102COVER SUB-ASSY, TRANSAXLE REAR
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX28-28,*8-1.25PX28-28
*8-1.25PX40-40,*8-1.25PX38-38
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104BPLUG, BREATHER, NO.1 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104FSEAL, OIL (FOR TRANSAXLE CASE)
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104UBOLT (FOR TRANSAXLE CASE)
*10-1.25PX53-26
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106EBOLT (FOR TRANSAXLE OIL PAN)
35144AGASKET, TRANSAXLE REAR COVER
35148GASKET, GOVERNOR APPLY, NO.1
35159GASKET, BRAKE DRUM
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35175CAP, TRANSAXLE CASE, NO.2
35175ARING, O (FOR TRANSAXLE CASE CAP)
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35395ASTRAINER, GOVERNOR OIL
9161160614
27 parts on this diagram · 1 diagram in section
