TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

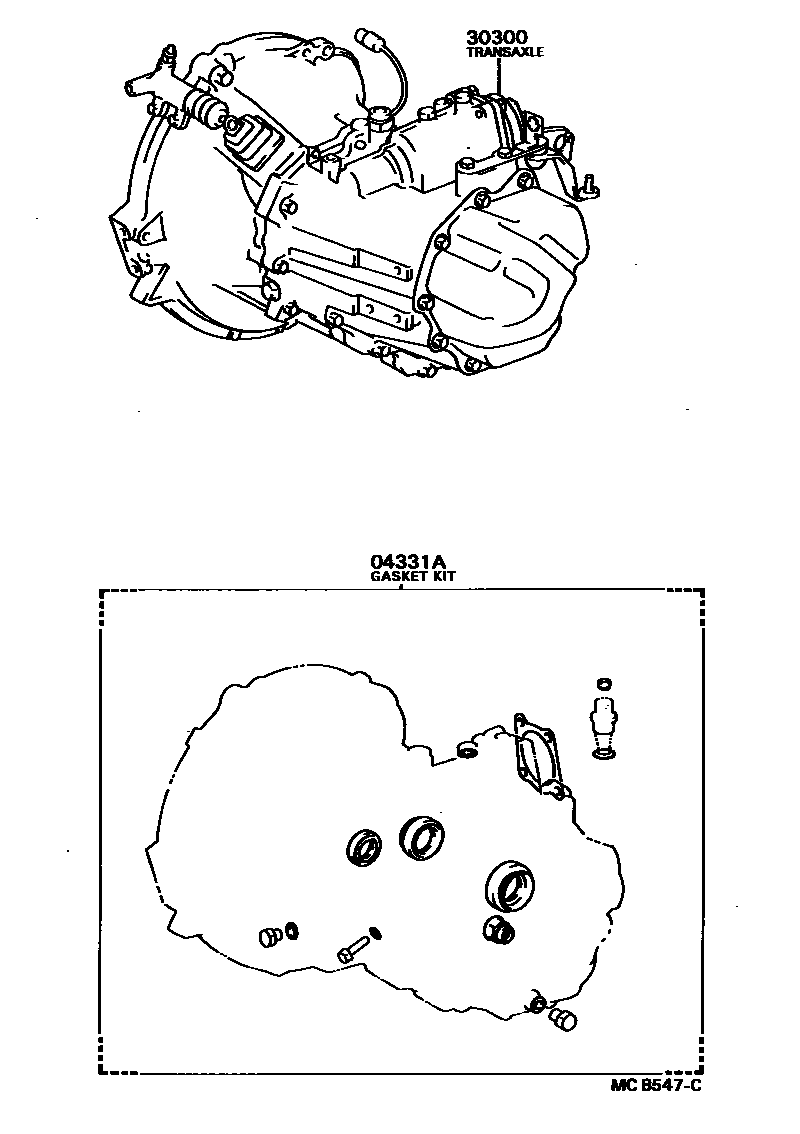

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-12080i198608-198808
30300TRANSAXLE ASSY, MANUAL
main30300-10010i198608-198704
*AXC=-522
sub30300-10011
sub11355-10011
sub91611-61025
main30300-10011i198704-198808
*AXC=-522
main30300-10050i198608-198704
*AXC=-682
sub30300-10051
sub11355-10011
sub91611-61025
main30300-10051i198704-198808
*AXC=-682
sub30300-16430
sub84210-60021
main30300-10060i198608-198704
*AXC=-522
sub30300-10061
sub11355-10011
sub91611-61025
main30300-10061i198704-198808
*AXC=-522
sub30300-16440
sub84210-60021

2 parts on this diagram · 1 diagram in section
