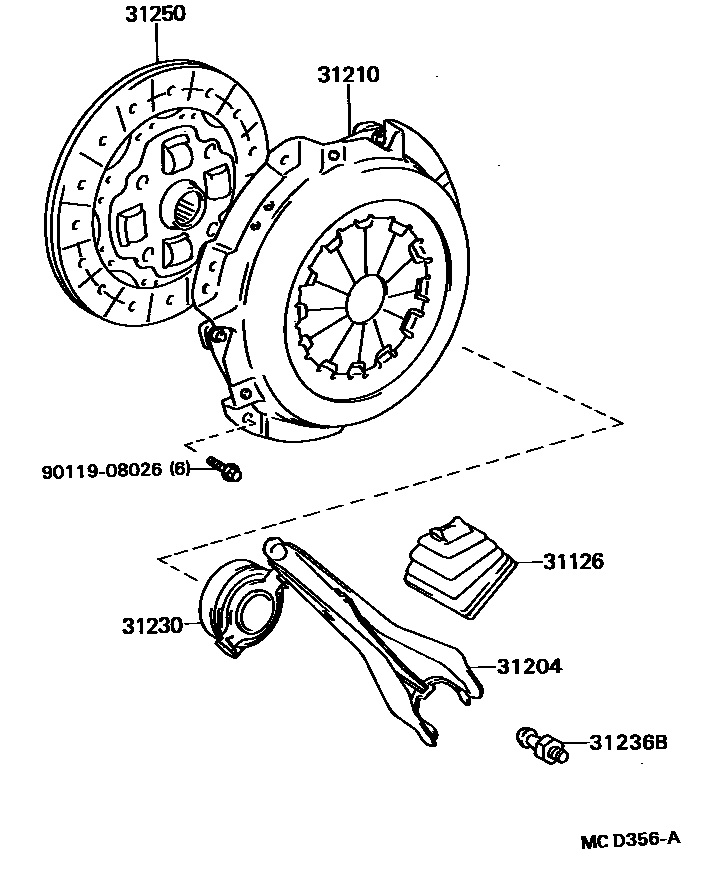

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12050iEL31..MTM198608-198701

sub31126-12051

main31126-12051iEL31..MTM198701-198808

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEL31..MTM198608-198808

31210COVER ASSY, CLUTCH

main31210-16070iEL31..5F198608-198808

*AXC=-522

sub31210-16071

main31210-16090iEL31..EZ198608-198808

*AXC=-682

sub31210-16091

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iEL31..MTM198801-198808

sub31230-16061

main31230-16060iEL31..MTM198608-198801

sub31230-16061

31236BSUPPORT, RELEASE FORK

main31236-12011iEL31..MTM198608-198808

31250DISC ASSY, CLUTCH

main31250-12133iEL31..5F198608-198803

*AXC=-522

sub31250-12170

main31250-12153iEL31..B;EL31..4F..USA198608-198609

*AXC=-682

sub31250-12154

main31250-12154iEL31..B;EL31..4F..USA198609-198803

*AXC=-682

sub31250-12155

main31250-12155iEL31..EZ198803-198808

*AXC=-682

sub31250-12156

main31250-12170iEL31..TER..MTM198803-198808

*AXC=-522

sub31250-12171

9011908026

main90119-08026

7 parts on this diagram · 1 diagram in section
