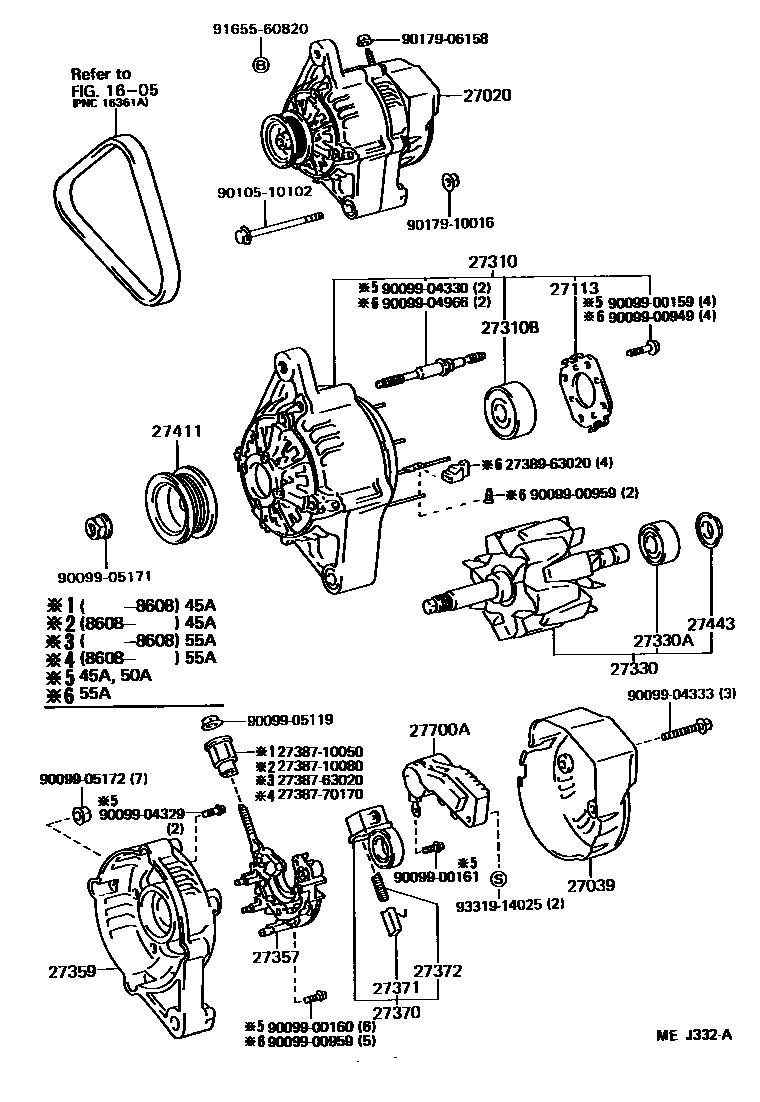

ALTERNATOR

1605

27020ALTERNATOR ASSY

main27060-10010i3E..EL31198608-198608

12V 55A,12V 55A

main27060-10011i3E..EL31198608-198808

12V 55A,12V 55A

main27060-10070i3E..EL31..(3FC,5F)..USA198608-198608

12V 45A,12V 45A

main27060-10071i3E..EL31..(3FC,5F)..USA198608-198805

12V 45A,12V 45A

main27060-10100i3E..EL31..TER..MTM..USA198805-198807

12V 50A,12V 50A

main27060-11080i3E..EL31..TER..MTM..USA198807-198808

12V 50A,12V 50A

sub27060-10100

27039COVER, ALTERNATOR REAR END

main27039-72110i3E..EL31198608-198808

12V 55A

main27039-72150i3E..EL31..(3FC,5F)..USA198608-198805

12V 45A

main27039-72150i3E..EL31..TER..MTM..USA198805-198808

12V 50A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-72100i3E..EL31198608-198808

12V 55A

main27312-72120i3E..EL31..(3FC,5F)..USA198608-198805

12V 45A

main27312-72120i3E..EL31..TER..MTM..USA198805-198808

12V 50A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-10021i3E..EL31198608-198808

12V 55A

sub27310-10070

main27310-10080i3E..EL31..(3FC,5F)..USA198608-198805

12V 45A

main27310-10090i3E..EL31..TER..MTM..USA198805-198808

12V 50A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10159i3E..EL31198608-198808

12V 50A,55A

sub90099-10199

main90099-10170i3E..EL31..(3FC,5F)..USA198608-198805

12V 45A

sub90099-10198

27330ROTOR ASSY, ALTERNATOR

main27330-10020i3E..EL31198608-198708

12V 55A

sub27330-10021

main27330-10021i3E..EL31198708-198808

12V 55A

main27330-72150i3E..EL31..(3FC,5F)..USA198608-198808

12V 45A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3E..EL31198608-198808

12V 55A

main90099-10154i3E..EL31..(3FC,5F)..USA198608-198805

12V 45A

main90099-10154i3E..EL31..TER..MTM..USA198805-198808

12V 50A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63040i3E..EL31198608-198808

12V 55A

main27357-72150i3E..EL31..(3FC,5F)..USA198608-198805

12V 45A

main27357-72150i3E..EL31..TER..MTM..USA198805-198808

12V 50A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16081i3E..EL31198608-198808

12V 55A

main27359-72150i3E..EL31..TER..USA198608-198805

12V 45A

main27359-72150i3E..EL31..TER..MTM..USA198805-198808

12V 50A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i3E..EL31198608-198808

12V 45A,50A,55A

sub27370-54450

27371BRUSH, ALTERNATOR

main27371-63020i3E..EL31198608-198808

12V 45A,50A,55A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-72100i3E..EL31198608-198808

12V 45A,50A,55A

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-10051i3E..EL31..(3FC,5F)..USA198608-198805

12V 45A

main27411-10051i3E..EL31..TER..MTM..USA198805-198808

12V 50A

main27411-70091i3E..EL31198608-198708

12V 55A

main27411-70200i3E..EL31198708-198808

12V 55A

27443COVER, ALTERNATOR BEARING

main27443-63020i3E..EL31198608-198808

12V 45A,50A,55A

27700AREGULATOR ASSY, GENERATOR

main27700-10050i3E..EL31..TER..USA198608-198805

12V 45A

sub27700-10080

main27700-10050i3E..EL31..TER..MTM..USA198807-198808

12V 50A

sub27700-10080

main27700-10080i3E..EL31..TER..MTM..USA198805-198807

12V 50A

sub27700-66010

main27700-63021i3E..EL31198608-198808

12V 55A

sub27700-70030

2738710050INSULATOR, TERMINAL

main27387-10050

2738710080INSULATOR, TERMINAL

main27387-10080

2738763020INSULATOR, TERMINAL

main27387-63020

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900159

main90099-00159

9009900160

main90099-00160

9009900161

main90099-00161

9009900949

main90099-00949

9009900959

main90099-00959

9009904329

main90099-04329

9009904330

main90099-04330

9009904333

main90099-04333

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510102

main90105-10102

9017906158

main90179-06158

9017910016

main90179-10016

9165560820

main91655-60820

9331914025

main93319-14025

38 parts on this diagram · 1 diagram in section
