CAUTION PLATE & NAME PLATE (ENGINE)

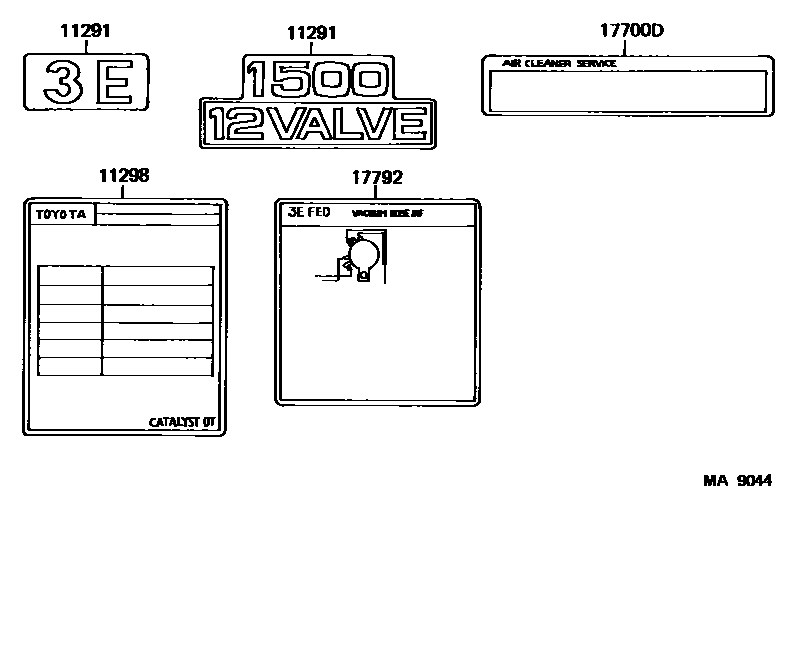

Parts diagram

11291PLATE, ENGINE NAME

main11292-11030i198608

12VALVE

11298PLATE, EMISSION CONTROL INFORMATION

main11298-11040i198608-198708

main11298-11041i198708-198808

main11298-11050i198608-198708

CALIFORNIA SPEC

main11298-11051i198708-198808

CALIFORNIA SPEC

main11298-11060i198608-198708

17700DPLATE, ENGINE CAUTION

main11293-74060i198608-198808

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-11140i198608-198708

main17792-11141i198708-198808

main17792-11150i198608-198708

CALIFORNIA SPEC

main17792-11151i198708-198808

CALIFORNIA SPEC

main17792-11160i198608-198708

main17792-11170i198608-198708

CALIFORNIA SPEC & W/PS

main17792-11180i198608-198708

CALIFORNIA SPEC

main17792-11181i198708-198808

CALIFORNIA SPEC

main17792-11190i198608-198708

CALIFORNIA SPEC & W/PS

main17792-11200i198608-198708

CALIFORNIA SPEC

main17792-11201i198708-198808

CALIFORNIA SPEC

main17792-11220i198701-198708

*AXC=-522

4 parts on this diagram · 1 diagram in section
