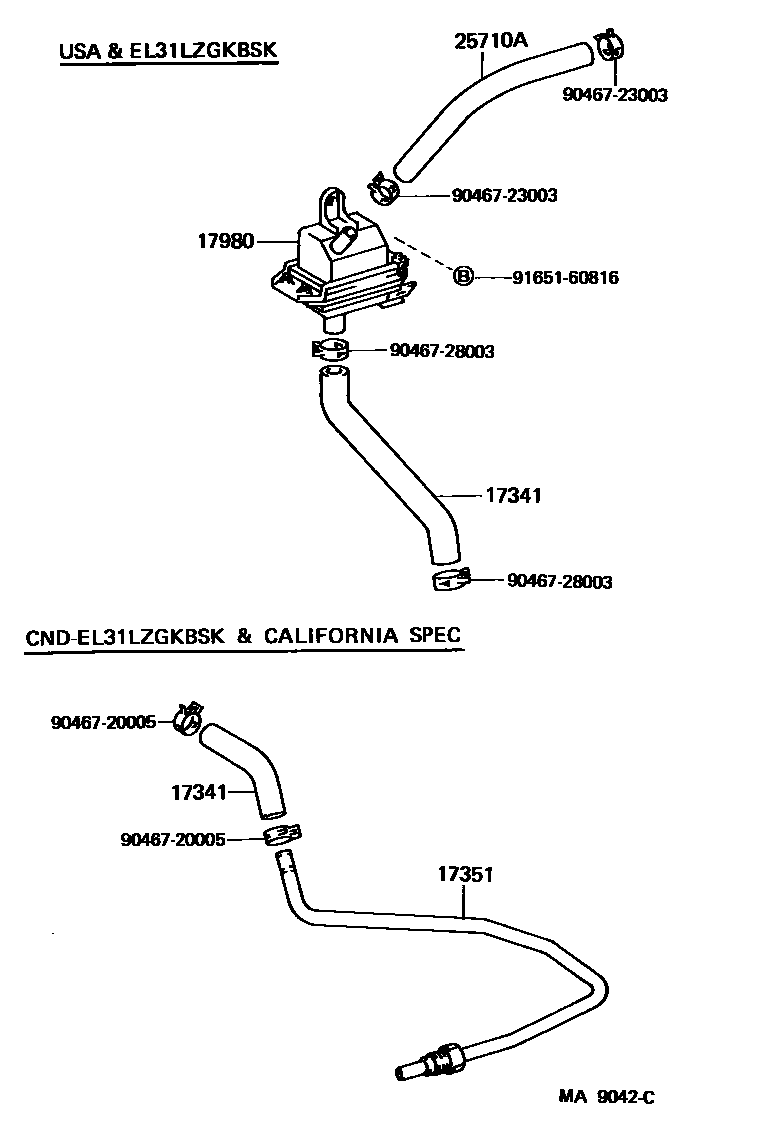

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-11020i3E..EL31..USA198608-198808

CALIFORNIA SPEC

main17341-11020i3E..EL31..(DX,STD)..CND198608-198708

main17341-11050i3E..EL31..USA198608-198808

17351MANIFOLD, AIR INJECTION

main17306-11020i3E..EL31..(DX,STD)..CND198608-198708

main17306-11020i3E..EL31..USA198608-198808

CALIFORNIA SPEC

17980FILTER ASSY, AIR SUCTION

main17980-11010i3E..EL31..B198608-198708

sub17980-11011

main17980-11011i3E..EL31198708-198808

25710AHOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)

main90445-15010i3E..EL31..B198608-198808

9046720005

main90467-20005

9046723003

main90467-23003

9046728003

main90467-28003

9165160816

main91651-60816

8 parts on this diagram · 2 diagrams in section
