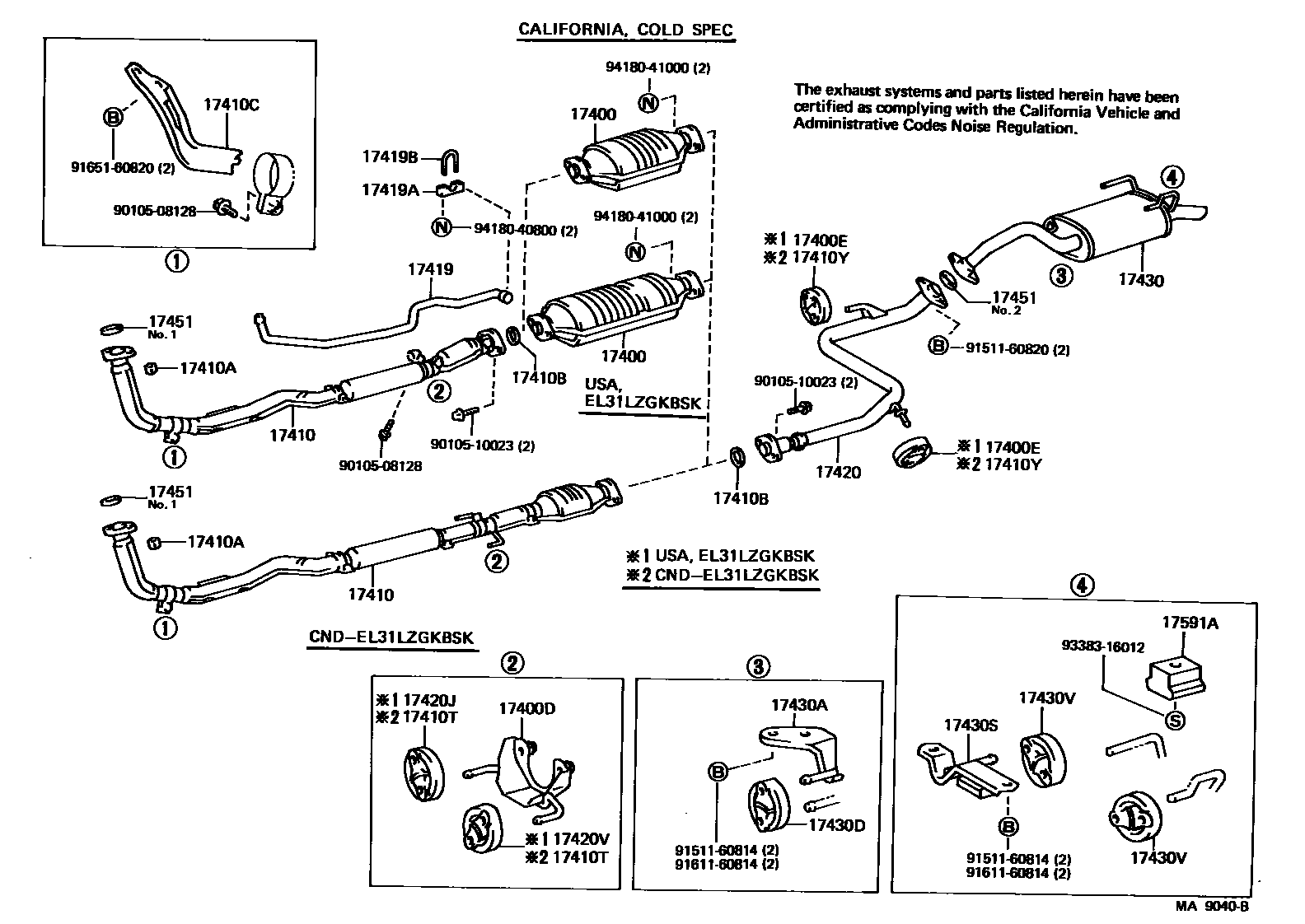

EXHAUST PIPE
17400DBRACKET, CATALYTIC CONVERTER SUPPORT
sub17503-11030
17400ERING, CATALYTIC CONVERTER
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
sub90917-06044
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410TBOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17419PIPE, CONVERTER AIR INLET
17419ACLAMP, NO.1(FOR CONVERTER AIR INLET PIPE)
17419BBOLT, U(FOR CONVERTER AIR INLET PIPE)
17420PIPE ASSY, EXHAUST, CENTER
CALIFORNIA SPEC
17420JBOLT OR RING, EXHAUST PIPE CENTER
17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR
17430PIPE ASSY, EXHAUST, TAIL
sub17430-11091
sub17430-11101
sub17430-11101
COLD SPEC
sub17430-11141
COLD SPEC
sub17430-11141
sub17430-11161
sub17430-11141
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
17591ASTOPPER, EXHAUST PIPE SUPPORT
9010508128
main90105-08128
9010510023
main90105-10023
9151160814
main91511-60814
9151160820
main91511-60820
9161160814
main91611-60814
9165160820
main91651-60820
9338316012
main93383-16012
9418040800
main94180-40800
9418041000
main94180-41000
31 parts on this diagram · 3 diagrams in section
