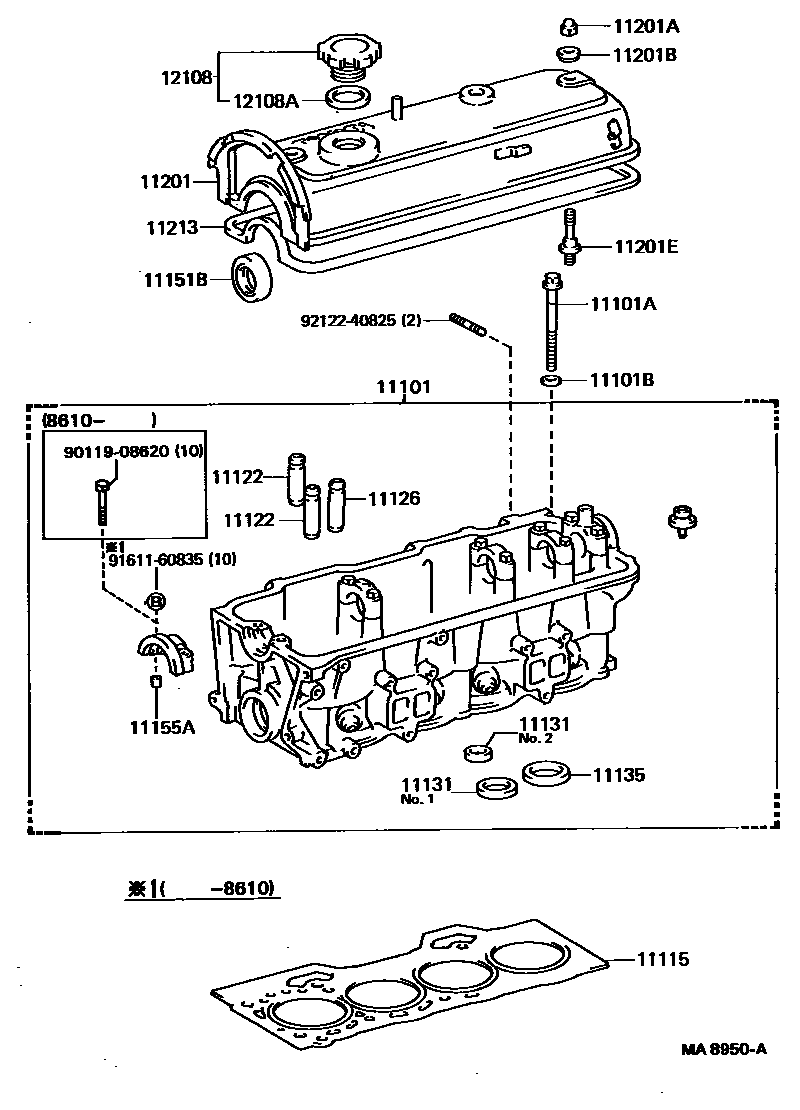

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11122BUSH, INTAKE VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11131SEAT, INTAKE VALVE
STD,NO.1,STD
O/S 0.03,NO.1,O/S 0.03
STD,NO.2,STD
O/S 0.03,NO.2,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
O/S 0.03,O/S 0.03
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
sub90210-09019
11201EBOLT, STUD(FOR CYLINDER HEAD COVER SET)
11213GASKET, CYLINDER HEAD COVER
sub11213-10011
12108AGASKET(FOR OIL FILLER CAP)
9011908620
main90119-08620
9161160835
main91611-60835
9212240825
main92122-40825
20 parts on this diagram · 1 diagram in section
