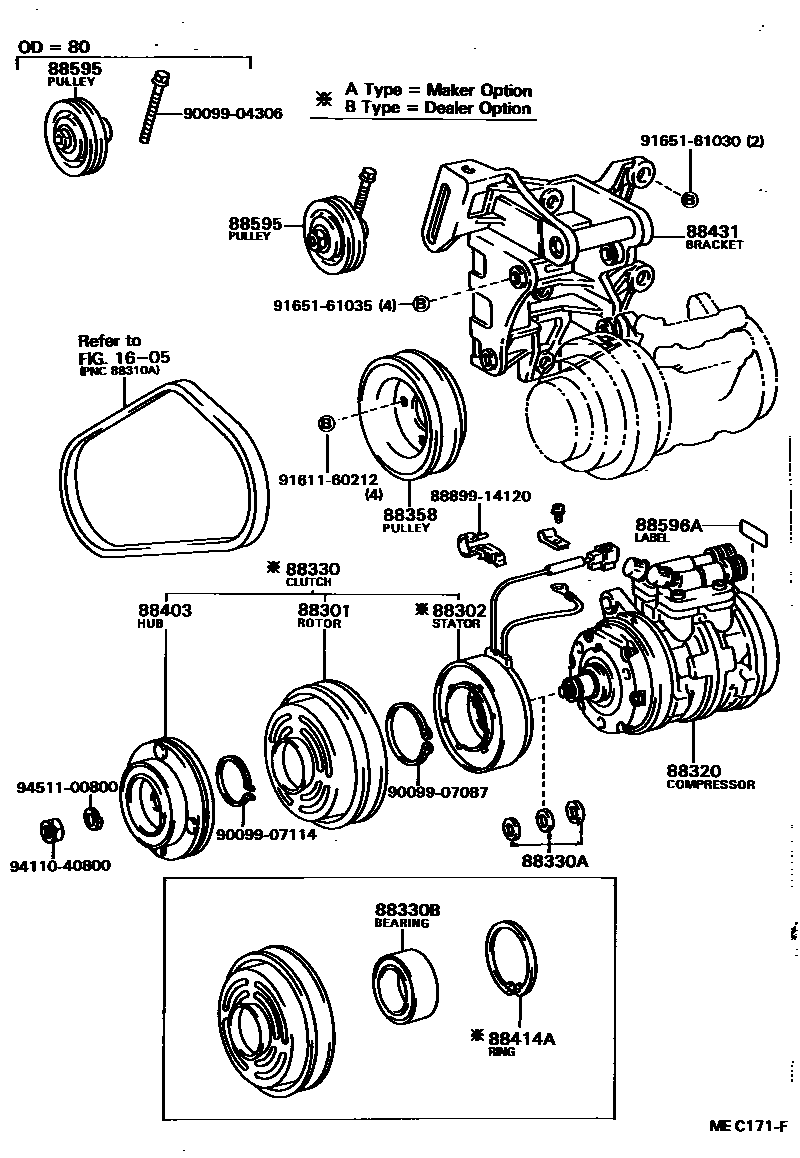

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14030iAL20,25..RHD..(ARL,GEN)198205-198801

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12100iAL25..RHD..(ARL,GEN)198307-198801

main88411-16010iAL2#..LHD198205-198703

88320COMPRESSOR ASSY, COOLER

main88320-16030iAL2#..LHD198205-198801

sub88320-16031

main88320-16031iAL25..LHD..GEN198703-198801

main88320-16040iAL20,25..RHD..(ARL,GEN)198205-198703

main88320-16041iAL25..RHD..(ARL,GEN)198703-198801

88330CLUTCH ASSY, MAGNET

main88410-12180iAL25..RHD..(ARL,GEN)198307-198801

main88410-16010iAL2#..LHD198205-198703

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iAL25..LHD..EUG;AL25..LHD..GEN198408-198801

88330BBEARING, MAGNET CLUTCH

main90099-10135iAL2#..LHD198205-198801

88358PULLEY, CRANKSHAFT TO COOLER COMPRESSOR DRIVE

main88358-16030iAL20198205-198408

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12040iAL25..RHD..(ARL,GEN)198703-198801

main88403-14040iAL2#..LHD198205-198801

88414ARING, SHIELD SNAP

main90099-07094iAL25..RHD..(ARL,GEN)198307-198801

main90099-07114iAL20,25..RHD..(ARL,GEN)198205-198703

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16020iAL2#..LHD198205-198801

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-16020iAL2#..LHD198205-198408

main88440-16020iAL25..GEN;AL25..LHD..EUG198408-198801

OD=90

main88440-16030iAL25..RHD..(ARL,GEN)198408-198801

OD=80

88596APLATE, CAUTION

main88356-12010iAL25..LHD..EUG;AL25..LHD..GEN198703-198801

8889914120COVER, EVAPORATOR

main88899-14120

9009904306

main90099-04306

9009907087

main90099-07087

9009907114

main90099-07114

9161160212

main91611-60212

9165161030

main91651-61030

9165161035

main91651-61035

9411040800

main94110-40800

9451100800

main94511-00800

22 parts on this diagram · 2 diagrams in section
