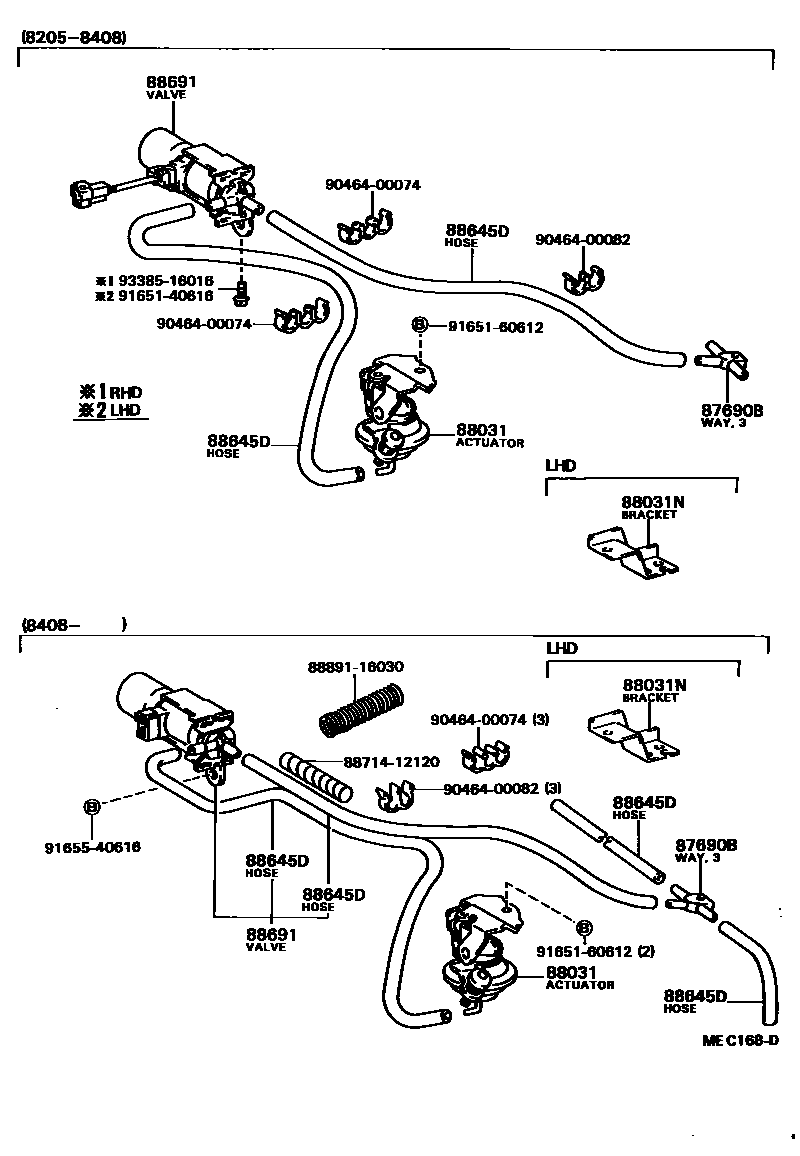

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

87690BWAY, 3

main90413-04005iAL2#..LHD198205-198801

88031ACTUATOR SET, IDLE-UP

main88031-12090iAL25..ARL198408-198801

main88031-16020iAL20,25..RHD..(ARL,GEN)198205-198801

88031NBRACKET, IDLE-UP ACTUATOR

main88688-16090iAL25..LHD..GEN198205-198801

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10060iAL20,25..RHD..GEN198205-198801

*H,L=570,MARK=#0

sub90999-92003

main95411-19930iAL25..LHD..GEN198503-198801

*H,L=60,MARK=#*

sub90999-92002

main95411-19960iAL20,25..RHD..GEN198205-198408

*H,L=450,MARK=#*

sub90999-92003

main95411-19960iAL25..ARL,GEN;AL25..LHD..EUG198408-198801

*H,L=330,MARK=#*

sub90999-92003

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-16140iAL25..ARL,GEN;AL25..LHD..EUG198408-198801

main88691-12040iAL25..ARL198308-198408

NO.1

main88691-87101iAL20,25..RHD..GEN198205-198408

main88691-87101iAL25..ARL198308-198408

NO.2

8871412120HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-12120

8889116030PACKING (FOR COOLER)

main88891-16030

9046400074

main90464-00074

9046400082

main90464-00082

9165140616

main91651-40616

9165160612

main91651-60612

9165540616

main91655-40616

9338516016

main93385-16016

13 parts on this diagram · 2 diagrams in section
