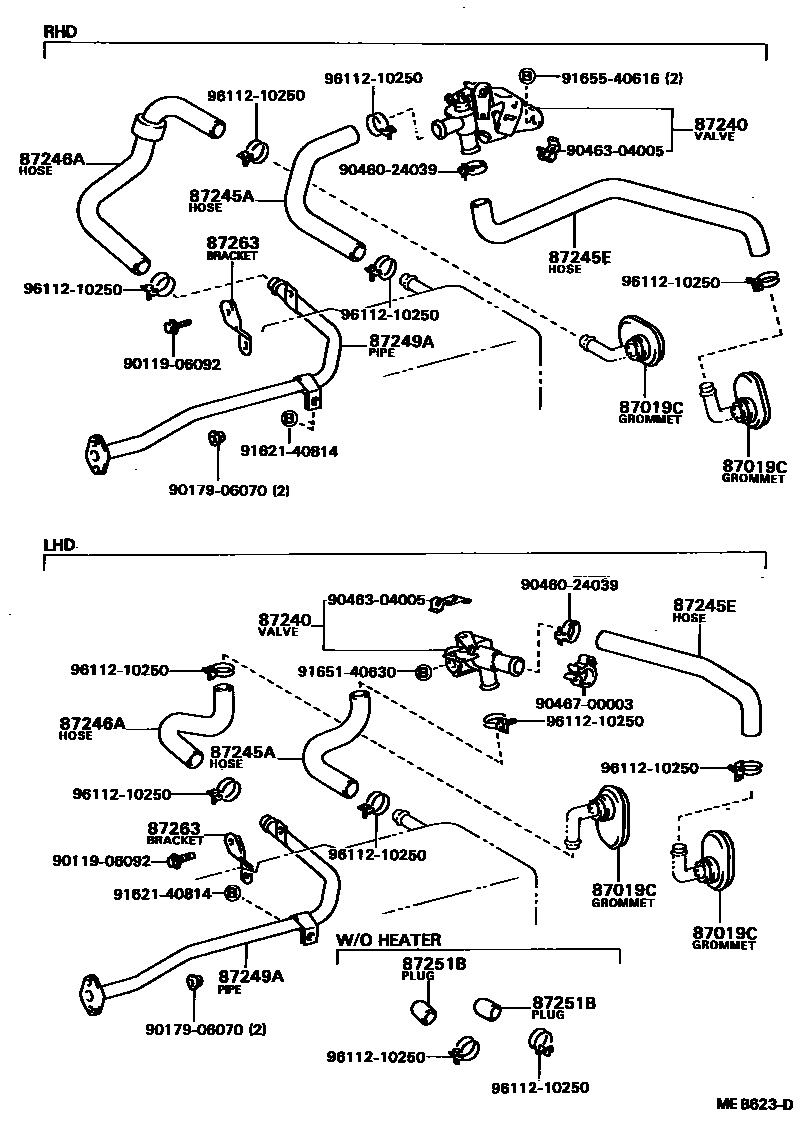

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01015iAL2#198205-198801

W/HEATER

87240VALVE ASSY, HEATER WATER

main87240-16030iAL20,25..RHD198205-198801

main87240-16040iAL2#..LHD198205-198801

87245AHOSE, HEATER WATER, INLET A

main87245-16090iAL20,25..RHD198205-198408

main87245-16120iAL2#..LHD198205-198801

main87245-16160iAL25..RHD198408-198801

87245EHOSE, HEATER WATER, INLET E

main87245-16080iAL20,25..RHD198205-198408

main87245-16110iAL2#..LHD198205-198801

main87245-16180iAL25..RHD198408-198801

87246AHOSE, HEATER WATER, OUTLET A

main87245-16100iAL20,25..RHD198205-198408

main87245-16130iAL2#..LHD198205-198801

main87245-16170iAL25..RHD198408-198801

87249APIPE, HEATER WATER OUTLET, A

main87208-16050iAL2#..EUR,GEN198205-198801

87251BPLUG, HEATER WATER

main90339-16007iAL20..LHD;AL25..LHD..EUG;AL25..LHD..GEN198205-198801

W/O HEATER

sub90339-16001

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-16010iAL2#..EUR,GEN198205-198801

9011906092

main90119-06092

9017906070

main90179-06070

9046024039

main90460-24039

9046304005

main90463-04005

9046700003

main90467-00003

9162140814

main91621-40814

9165140630

main91651-40630

9165540616

main91655-40616

9611210250

main96112-10250

17 parts on this diagram · 1 diagram in section
